- Product number
- 702149 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- RAD1 Recombinant Rabbit Monoclonal Antibody (8H19L13)
- Antibody type
- Monoclonal
- Antigen
- Other
- Reactivity
- Human
- Host
- Rabbit
- Isotype
- IgG
- Antibody clone number
- 8H19L13
- Vial size
- 100 µg
- Concentration
- 0.5 mg/mL
- Storage
- Store at 4°C short term. For long term storage, store at -20°C, avoiding freeze/thaw cycles.
Submitted references Co-regulation and function of FOXM1/RHNO1 bidirectional genes in cancer.
Barger CJ, Chee L, Albahrani M, Munoz-Trujillo C, Boghean L, Branick C, Odunsi K, Drapkin R, Zou L, Karpf AR
eLife 2021 Apr 23;10
eLife 2021 Apr 23;10
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

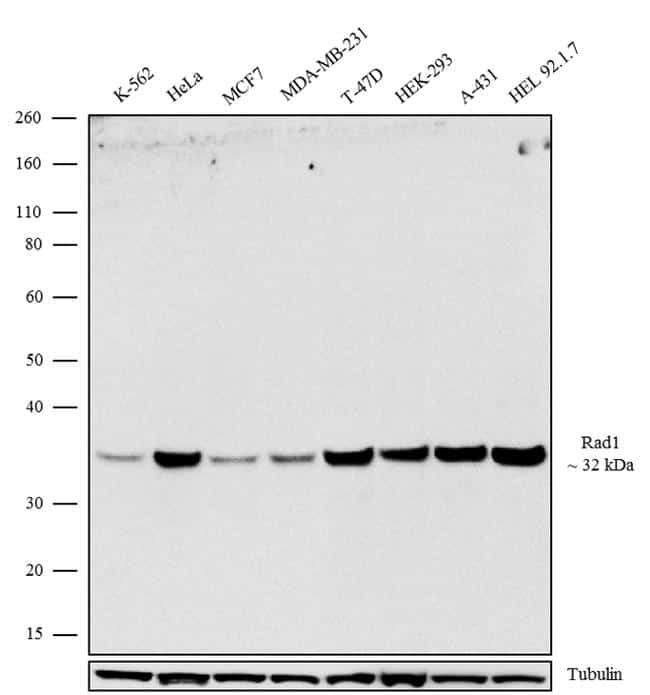

- Western blot analysis was performed on Nuclear enriched extracts (30 µg lysate) of K-562 (Lane 1), HeLa (Lane 2), MCF7 (Lane 3), MDA-MB-231 (Lane 4), T-47D (Lane 5), HEK-293 (Lane 6), A-431 (Lane 7) and HEL 92.1.7 (Lane 8). The blots were probed with Anti-Rad1 Recombinant Rabbit Monoclonal Antibody (Product # 702149, 1-2 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 32 kDa band corresponding to Rad1 was observed across the cell lines tested. Known quantity of protein samples were electrophoresed using Novex®NuPAGE®4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis was performed on Nuclear enriched extracts (30 µg lysate) of K-562 (Lane 1), HeLa (Lane 2), MCF7 (Lane 3), MDA-MB-231 (Lane 4), T-47D (Lane 5), HEK-293 (Lane 6), A-431 (Lane 7) and HEL 92.1.7 (Lane 8). The blots were probed with Anti-Rad1 Recombinant Rabbit Monoclonal Antibody (Product # 702149, 1-2 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 32 kDa band corresponding to Rad1 was observed across the cell lines tested. Known quantity of protein samples were electrophoresed using Novex®NuPAGE®4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- For immunofluorescence analysis, HeLa cells were fixed and permeabilized for detection of endogenous Rad1 using Rad1 Recombinant Rabbit Monoclonal Antibody (Product # 702149, 2 µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 1:2000). Panel a) shows representative cells that were stained for detection and localization of Rad1 protein (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938). Panel c) represents cytoskeletal F-actin staining using Alexa Fluor® 555 Rhodamine Phalloidin (Product # R415, 1:300). Panel d) is a composite image of Panels a, b and c clearly demonstrating nuclear localization of Rad1. Panel e) represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.
