M00952

antibody from Boster Biological Technology

Targeting: OPTN FIP-2, FIP2, GLC1E, HIP7, HYPL, NRP, TFIIIA-INTP

Western blot (Supportive data in Antibodypedia)

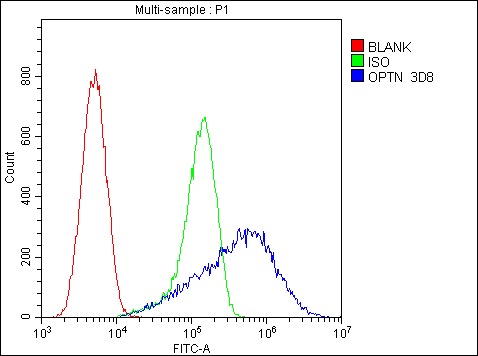

Flow cytometry (Data presented on provider website)

Antibody Data

Product number

M00952

Provider

Boster Biological Technology

Product name

Anti-Optineurin/OPTN Antibody Picoband™ (monoclonal, 3D8)

Antibody type

Monoclonal

Description

Mouse IgG monoclonal antibody for Optineurin/OPTN detection. Tested with WB, FCM in Human;Mouse;Rat.

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

3D8

Vial size

100μg/vial

Concentration

0.5-1mg/ml, actual concentration vary by lot. Use suggested dilution ratio to decide dilution procedure.

Storage

At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquoted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.

Handling

Add 0.2ml of distilled water will yield a concentration of 500μg/ml.

Western blot

Supportive validation

Submitted by

Boster Biological Technology (provider)

Main image

Experimental details

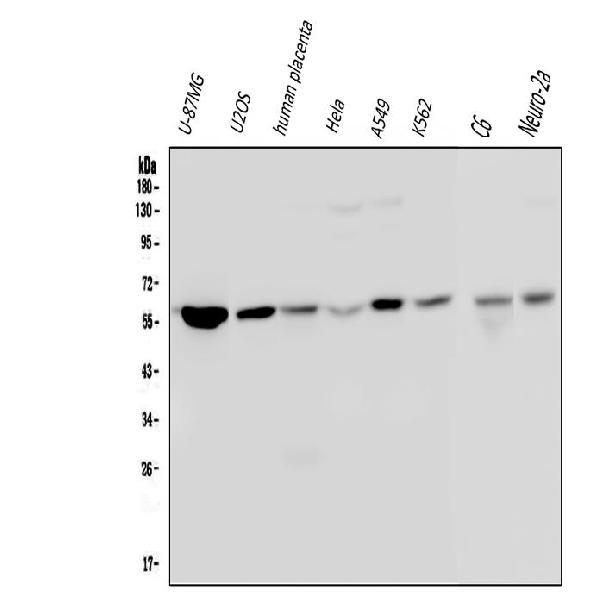

Western blot analysis of Optineurin/OPTN using anti-Optineurin/OPTN antibody (M00952). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: human U-87MG whole cell lysates; Lane 2: human U20S whole cell lysates; Lane 3: human placenta tissue lysates; Lane 4: human Hela whole cell lysates; Lane 5: human A549 whole cell lysates; Lane 6: human K562 whole cell lysates; Lane 7: rat C6 whole cell lysates; Lane 8: mouse Neuro-2a whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-Optineurin/OPTN antigen affinity purified monoclonal antibody (Catalog # M00952) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for Optineurin/OPTN at approximately 66KD. The expected band size for Optineurin/OPTN is at 66KD.

Additional image
