MA5-45607

antibody from Invitrogen Antibodies

Targeting: ABCC9 CMD1O, SUR2

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Recommended by provider)

Antibody Data

Product number

MA5-45607

Provider

Invitrogen Antibodies

Product name

SUR2A Monoclonal Antibody (S319A-14), APC

Antibody type

Monoclonal

Antigen

Other

Reactivity

Human, Mouse, Rat

Host

Mouse

Isotype

IgG

Antibody clone number

S319A-14

Vial size

100 µg

Concentration

1 mg/mL

Storage

4° C

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

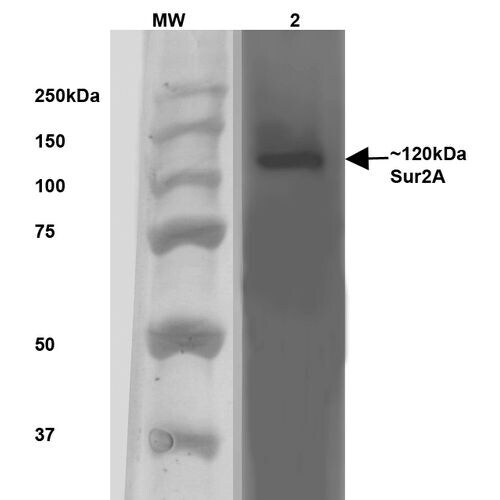

Western Blot analysis of Rat Brain Membrane showing detection of ~120 kDa SUR2A protein. Lane 1: MW Ladder. Lane 2: Rat Brain Membrane (10 µg). Load: 10 µg. Blocking: 5% milk. Samples were incubated with SUR2A monoclonal antibody (Product # MA5-45607) at 1:1,000 for 1 hour at RT, followed by Goat Anti-Mouse IgG: HRP at 1:200 for 1 hour at RT. Color Development: TMB solution for 10 min at RT. Predicted/Observed Size: ~120 kDa.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% PFA for 15 min. Samples were incubated with SUR2A monoclonal antibody (Product # MA5-45607) at 1:200 for overnight at 4°C with slow rocking, followed by AlexaFluor 488 at 1:1,000 for 1 hour at RT. Counterstain used was Phalloidin-iFluor 647 (red) F-Actin stain; Hoechst (blue) nuclear stain at 1:800, 1.6mM for 20 min at RT. (A) Hoechst (blue) nuclear stain. (B) Phalloidin-iFluor 647 (red) F-Actin stain. (C) SUR2A antibody (D) Composite.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry/Immunofluorescence analysis using human neuroblastoma cells. Fixation involved 4% Formaldehyde for 15 min at RT. Samples were incubated with SUR2A monoclonal antibody (Product # MA5-45607) at 1:100 for 60 min at RT, followed by Goat Anti-Mouse ATTO 488 at 1:100 for 60 min at RT. Counterstain used was Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1,000, 1:5,000 for 60 min RT, 5 min RT. Localization: Membrane. Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) SUR2A antibody. (D) Composite.
