- Product number
- MA5-34930 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- HSP701L Monoclonal Antibody (7D3)
- Antibody type
- Monoclonal
- Antigen
- Recombinant full-length protein
- Description
- Positive Control: A549, 293T, rat testis tissue, mouse testis tissue.
- Reactivity
- Human
- Host
- Mouse
- Isotype
- IgG
- Antibody clone number
- 7D3
- Vial size
- 100 µL
- Concentration
- 1 mg/mL
- Storage
- -20° C, Avoid Freeze/Thaw Cycles, store in dark
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

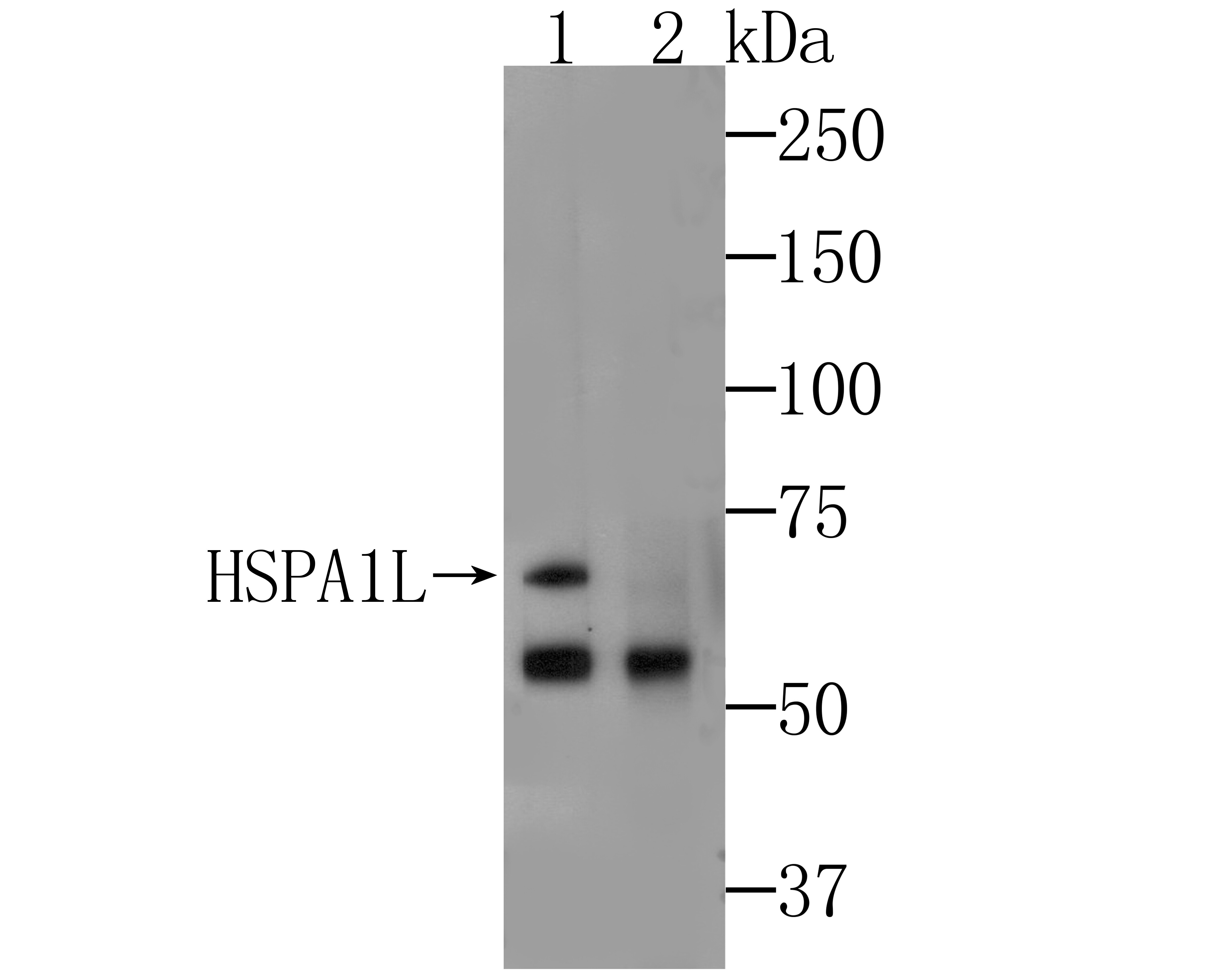

- Western blot analysis of HSPA1L in A549 cell lysate. Samples were transferred to PVDF membrane, blocked with 5% BSA (1 hour), incubated with HSPA1L monoclonal antibody (Product # MA5-34930), at a dilution of 1:500 (5% BSA, 2 hours), followed by Goat Anti-Mouse IgG - HRP (1 hour) with a dilution of 1:5000.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescent analysis of HSPA1L in 293T cells (green). Samples were formalin fixed, permeabilized with 0.1% Triton X-100 in TBS (1 hour, room temperature) and blocked with 1% BSA (15 min, room temperature), incubated with HSPA1L monoclonal antibody (Product # MA5-34930) at a dilution of 1:50 (1 hour, room temperature), and followed by Alexa Fluor 488 Goat anti-Rabbit IgG and DAPI (blue) with a dilution of 1:100.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemistry analysis of HSPA1L in paraffin-embedded rat testis tissue. Samples were heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, 20 min) and blocked in 5% BSA (30 min, room temperature), incubated with HSPA1L monoclonal antibody (Product # MA5-34930) at a dilution of 1:200 (30 min, room temperature), and followed by HRP conjugated compact polymer system, DAB, counterstained with hematoxylin (mounted with DPX).
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemistry analysis of HSPA1L in paraffin-embedded mouse testis tissue. Samples were heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, 20 min) and blocked in 5% BSA (30 min, room temperature), incubated with HSPA1L monoclonal antibody (Product # MA5-34930) at a dilution of 1:200 (30 min, room temperature), and followed by HRP conjugated compact polymer system, DAB, counterstained with hematoxylin (mounted with DPX).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

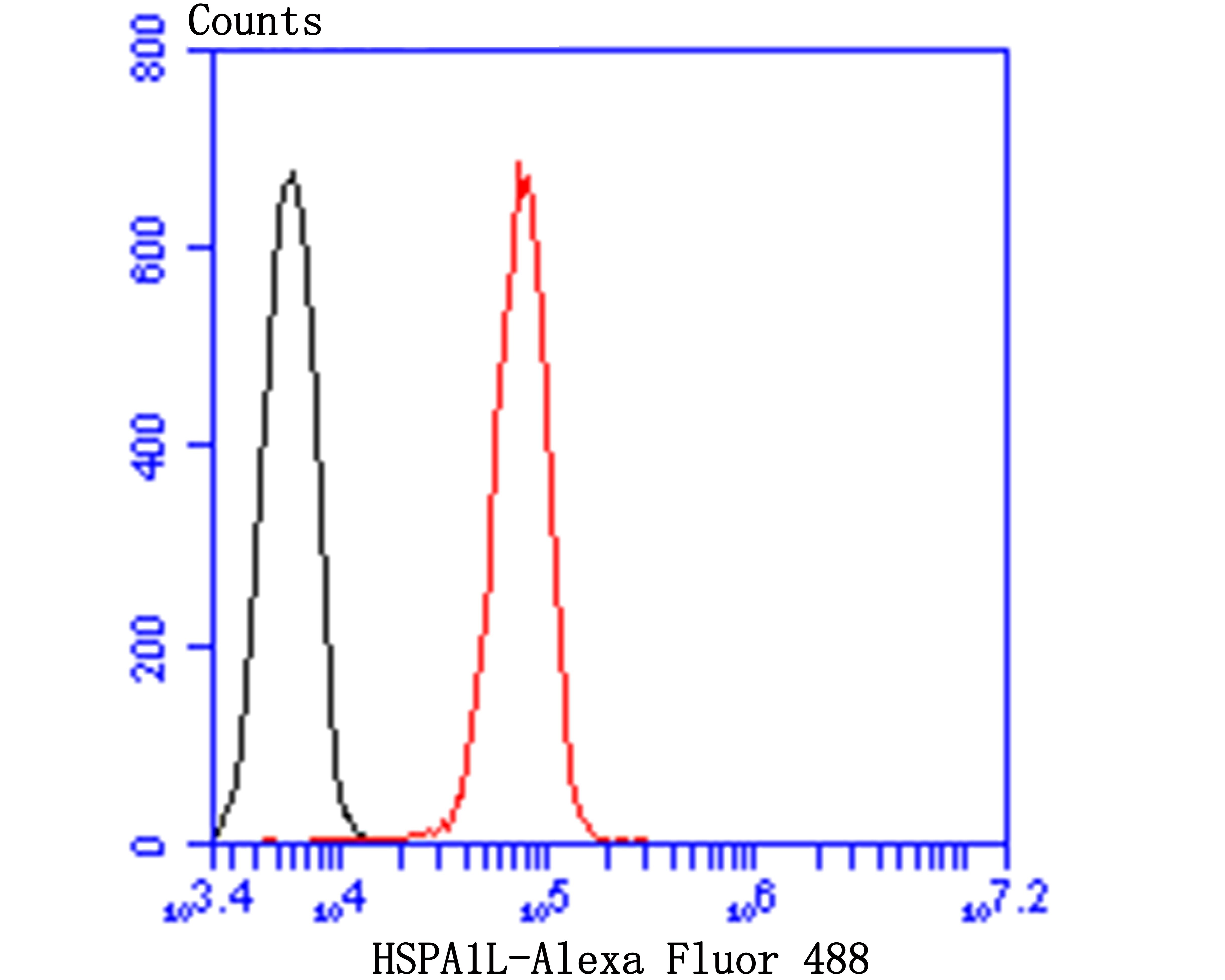

- Flow cytometry of HSPA1L in 293T cells, (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Samples were incubated with HSPA1L monoclonal antibody (Product # MA5-34930) at a dilution of 1:100, followed by Alexa Fluor 488-conjugated goat anti-mouse IgG with a dilution of 1:500.
