701884

antibody from Invitrogen Antibodies

Targeting: KLF1 EKLF

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

701884

Provider

Invitrogen Antibodies

Product name

EKLF Recombinant Rabbit Monoclonal Antibody (15H43L4)

Antibody type

Monoclonal

Antigen

Synthetic peptide

Description

This antibody is predicted to react with Monkey, Bovine and Pig.

Antibody clone number

15H43L4

Concentration

0.5 mg/mL

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

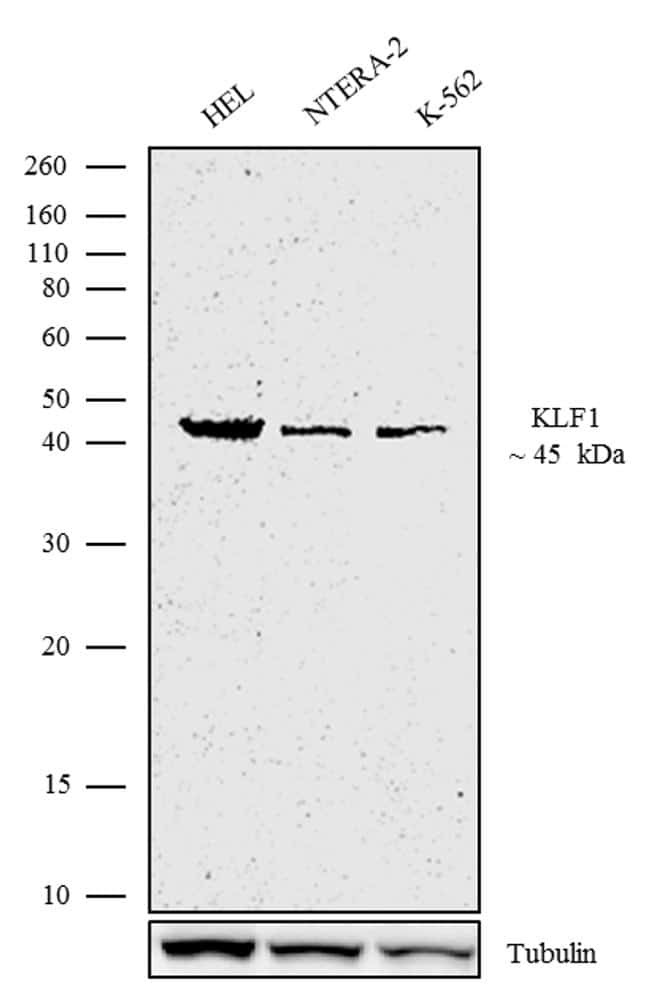

Western blot analysis was performed on whole cell extracts (30 µg lysate) of HEL (Lane 1), NTERA-2 (Lane 2) and K-562 (Lane 3). The blots were probed with Anti-KLF1 Recombinant Rabbit Monoclonal Antibody (Product # 701884, 1-2 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 45 kDa band corresponding to KLF1 was observed across cell lines tested. Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock™ Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

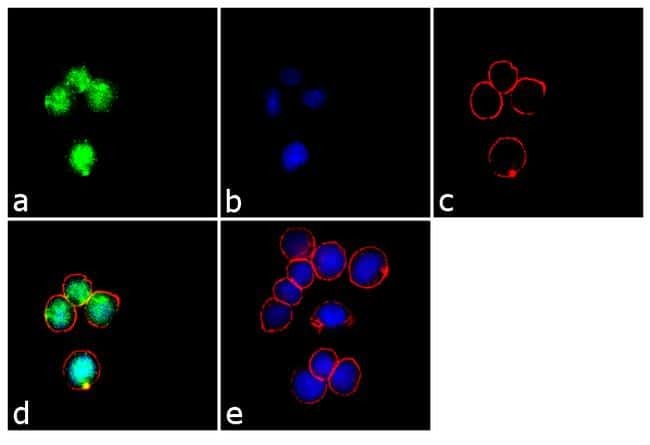

Immunofluorescence analysis was performed on fixed and permeabilized HEL cells for detection of endogenous KLF1 using Anti- KLF1 Recombinant Rabbit Monoclonal Antibody (Product # 701884, 2 µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 1:2000). Panel a) shows representative cells that were stained for detection and localization of KLF1 (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938). Panel c) represents cytoskeletal F-actin staining using Alexa Fluor® 555 Rhodamine Phalloidin (Product # R415, 1:300). Panel d) is a composite image of Panels a, b and c clearly demonstrating nuclear localization of KLF1. Panel e) represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

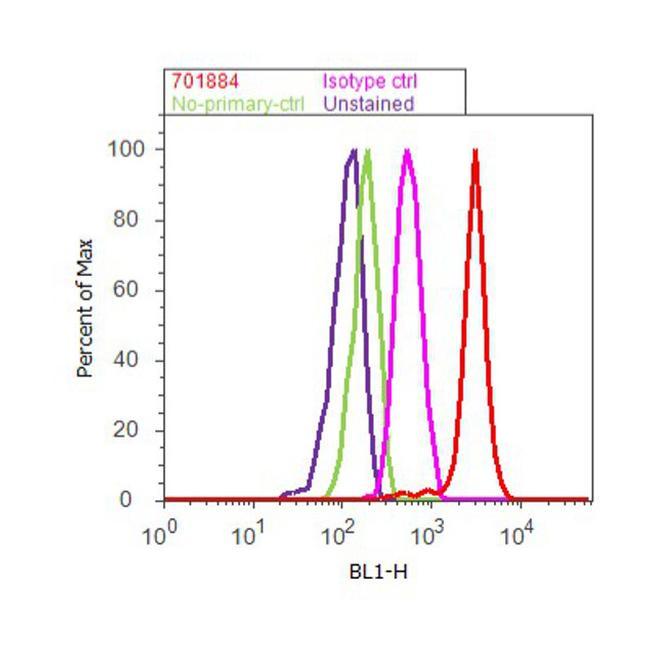

Flow Cytometry analysis of endogenous KLF1 was performed on K-562 cells labeled with ABfinity™ Anti-KLF1 Recombinant Rabbit Monoclonal Antibody (Product# 701884, 5 ug/ 1M cells) or with rabbit isotype control at 0.5 ug/ml and detected with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, (Alexa Fluor® 488 conjugate, Product# A27034, 0.4 ug/ml, 1:2500) as represented by the red and pink histograms respectively. The purple histogram represents unstained control cells and the green histogram represents no-primary-antibody control. A representative of 10,000 cells were acquired and analyzed for each sample using an Attune® Acoustic Focusing Cytometer (4468770).
