- Product number
- 711569 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- ANP Recombinant Polyclonal Antibody (17 HCLC)
- Antibody type
- Polyclonal
- Antigen
- Synthetic peptide
- Description
- This antibody is predicted to react with Monkey, Cat, Pig
- Antibody clone number
- 17 HCLC
- Concentration
- 0.5 mg/mL
Submitted references Cardiac Protective Effect of Kirenol against Doxorubicin-Induced Cardiac Hypertrophy in H9c2 Cells through Nrf2 Signaling via PI3K/AKT Pathways.
Alzahrani AM, Rajendran P, Veeraraghavan VP, Hanieh H
International journal of molecular sciences 2021 Mar 23;22(6)
International journal of molecular sciences 2021 Mar 23;22(6)
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis was performed on Tissue extracts (30 µg lysate) of Mouse heart (Lane 1), Rat heart (Lane 2), Mouse Brain (Lane 3) and Rat brain (Lane 4). The blots were probed with Anti-NPPA (ANP) Recombinant Rabbit Polyclonal Antibody (Product # 711569, 1-2 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 17 kDa band corresponding to NPPA (ANP) was observed only in Heart tissue extracts tested. Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

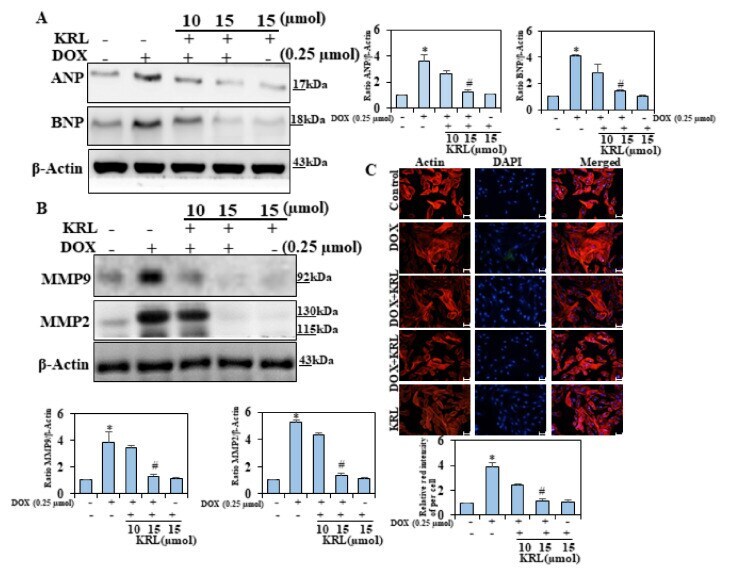

- Figure 2 Effects of KRL on DOX-induced hypertrophy. H9c2 cells were treated for 24 h with 15 uM of KRL, 2 h before DOX (0.25 umol) treatment. ( A ) Representative Western blots showing changes in the protein levels of ANP and BNP. ( B ) KRL is illustrated to downregulate MMP9 and MMP2. Western blot analysis was performed to determine the total protein MMP9 and MMp2 levels in the total extract by including beta-actin as an internal loading control. ( C ) H9c2 cells were treated for 24 h with 10 and 15 uM of KRL, 2 h before the DOX (0.25 umol) treatment. The cells then underwent actin filament staining to observe the changes in the surface area of the cardiomyocytes. Scale bar indicated 100u m at 20x magnification. Data are represented as the mean +- SD of triplicate values ( n = 3) and * p < 0.05 represents significant variations compared with the control. # p < 0.05 represents significant variations as compared to DOX alone and KRL with DOX treatment groups.
