- Product number
- AP09296PU-N - Provider product page
- Provider
- Acris Antibodies GmbH
- Proper citation
- Acris Antibodies GmbH Cat#AP09296PU-N, RRID:AB_2035554
- Product name
- anti GGA3 (400-415)
- Antibody type
- Polyclonal
- Antigen
- Synthetic peptide corresponding to amino acids 400-415 of Human GGA3
- Reactivity
- Human
- Host
- Rabbit
- Isotype
- IgG
- Vial size
- 0.1 mg
- Concentration
- 0.62 mg/ml (by UV absorbance at 280 nm)
No comments: Submit comment
Supportive validation
- Submitted by
- Acris Antibodies GmbH (provider)
- Main image
- Experimental details

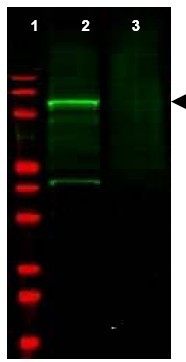

- Western blot using Affinity Purified anti-GGA3 antibody shows detection of a band at ~110 kDa corresponding to GFP-GGA3 fusion protein present in a lysate of HEK293 cells over- expressing the recombinant protein (lane 2, arrowhead). Pre-incubation of antibody with immunizing peptide blocks specific staining (lane 3). MW markers are shown in lane 1 (700 nm channel - red). Approximately 35 µg of lysate was separated on a 16% Tricine gel by SDSPAGE and transferred onto nitrocellulose. After blocking the membrane was probed with the primary antibody diluted to 1:600. Reaction occurred overnight at 4° C followed by washes and reaction with a 1:10,000 dilution of IRDye(TM)800 conjugated Gt-a-Rabbit IgG [H&L] for 45 min at room temperature (800 nm channel - green). IRDye(TM)800 fluorescence image was captured using the Odyssey(R) Infrared Imaging System developed by LI-COR. IRDye is a trademark of LI-COR, Inc. Other detection systems will yield similar results.
