AF1086

antibody from Novus Biologicals

Targeting: PDCD1 CD279, hSLE1, PD-1, PD1, SLEB2

Provider product page for AF1086

Western blot

Immunohistochemistry

Flow cytometry

Blocking/Neutralizing

Antibody data

Antibody Data
Antigen structure
References [25]
Comments [0]
Validations
Western blot [2]
Immunohistochemistry [1]
Flow cytometry [1]

Submit

Product number: AF1086 - Provider product page
Provider: Novus Biologicals
Product name: Goat Polyclonal PD-1 Antibody
Antibody type: Polyclonal
Description: Antigen Affinity-purified. Detects human PD-1 in ELISAs and Western blots. In sandwich ELISAs, less than 2% cross-reactivity with recombinant mouse PD-1 and less than 0.2% cross-reactivity with recombinant human (rh) CD28, rhICOS, and rhCTLA-4 is observed.
Reactivity: Human
Host: Goat
Conjugate: Unconjugated
Isotype: IgG
Vial size: 100 ug
Concentration: LYOPH
Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 degreesC as supplied. 1 month, 2 to 8 degreesC under sterile conditions after reconstitution. 6 months, -20 to -70 degreesC under sterile conditions after reconstitution.

PDCD1 protein structure - AF1086 shown in red.

Submitted references Concordance of PD-1 and PD-L1 (B7-H1) in paired primary and metastatic clear cell renal cell carcinoma.

Eckel-Passow JE, Ho TH, Serie DJ, Cheville JC, Houston Thompson R, Costello BA, Dong H, Kwon ED, Leibovich BC, Parker AS
Cancer medicine 2020 Feb;9(3):1152-1160

Low levels of SIV-specific CD8+ T cells in germinal centers characterizes acute SIV infection.

Li S, Folkvord JM, Kovacs KJ, Wagstaff RK, Mwakalundwa G, Rendahl AK, Rakasz EG, Connick E, Skinner PJ
PLoS pathogens 2019 Mar;15(3):e1007311

Tumor-derived exosomal HMGB1 promotes esophageal squamous cell carcinoma progression through inducing PD1(+) TAM expansion.

Li B, Song TN, Wang FR, Yin C, Li Z, Lin JP, Meng YQ, Feng HM, Jing T
Oncogenesis 2019 Feb 22;8(3):17

Blockade of Tumor-Expressed PD-1 promotes lung cancer growth.

Du S, McCall N, Park K, Guan Q, Fontina P, Ertel A, Zhan T, Dicker AP, Lu B
Oncoimmunology 2018;7(4):e1408747

Tumor-derived exosomes induce PD1(+) macrophage population in human gastric cancer that promotes disease progression.

Wang F, Li B, Wei Y, Zhao Y, Wang L, Zhang P, Yang J, He W, Chen H, Jiao Z, Li Y
Oncogenesis 2018 May 25;7(5):41

Altered Ratio of T Follicular Helper Cells to T Follicular Regulatory Cells Correlates with Autoreactive Antibody Response in Simian Immunodeficiency Virus-Infected Rhesus Macaques.

Fan W, Demers AJ, Wan Y, Li Q
Journal of immunology (Baltimore, Md. : 1950) 2018 May 1;200(9):3180-3187

Quantitative Multiplexed Imaging Analysis Reveals a Strong Association between Immunogen-Specific B Cell Responses and Tonsillar Germinal Center Immune Dynamics in Children after Influenza Vaccination.

Amodio D, Cotugno N, Macchiarulo G, Rocca S, Dimopoulos Y, Castrucci MR, De Vito R, Tucci FM, McDermott AB, Narpala S, Rossi P, Koup RA, Palma P, Petrovas C
Journal of immunology (Baltimore, Md. : 1950) 2018 Jan 15;200(2):538-550

Analysis of expression of the PD-1/PD-L1 immune checkpoint system and its prognostic impact in gastroenteropancreatic neuroendocrine tumors.

Sampedro-Núñez M, Serrano-Somavilla A, Adrados M, Cameselle-Teijeiro JM, Blanco-Carrera C, Cabezas-Agricola JM, Martínez-Hernández R, Martín-Pérez E, Muñoz de Nova JL, Díaz JÁ, García-Centeno R, Caneiro-Gómez J, Abdulkader I, González-Amaro R, Marazuela M
Scientific reports 2018 Dec 13;8(1):17812

Associations of Simian Immunodeficiency Virus (SIV)-Specific Follicular CD8(+) T Cells with Other Follicular T Cells Suggest Complex Contributions to SIV Viremia Control.

Rahman MA, McKinnon KM, Karpova TS, Ball DA, Venzon DJ, Fan W, Kang G, Li Q, Robert-Guroff M
Journal of immunology (Baltimore, Md. : 1950) 2018 Apr 15;200(8):2714-2726

Increased expression of programmed cell death protein 1 on NK cells inhibits NK-cell-mediated anti-tumor function and indicates poor prognosis in digestive cancers.

Liu Y, Cheng Y, Xu Y, Wang Z, Du X, Li C, Peng J, Gao L, Liang X, Ma C
Oncogene 2017 Nov 2;36(44):6143-6153

Particulate Array of Well-Ordered HIV Clade C Env Trimers Elicits Neutralizing Antibodies that Display a Unique V2 Cap Approach.

Martinez-Murillo P, Tran K, Guenaga J, Lindgren G, Àdori M, Feng Y, Phad GE, Vázquez Bernat N, Bale S, Ingale J, Dubrovskaya V, O'Dell S, Pramanik L, Spångberg M, Corcoran M, Loré K, Mascola JR, Wyatt RT, Karlsson Hedestam GB
Immunity 2017 May 16;46(5):804-817.e7

Immune Cell Dynamics in Rhesus Macaques Infected with a Brazilian Strain of Zika Virus.

Silveira ELV, Rogers KA, Gumber S, Amancha P, Xiao P, Woollard SM, Byrareddy SN, Teixeira MM, Villinger F
Journal of immunology (Baltimore, Md. : 1950) 2017 Aug 1;199(3):1003-1011

PD-L1, PD-L2 and PD-1 expression in metastatic melanoma: Correlation with tumor-infiltrating immune cells and clinical outcome.

Obeid JM, Erdag G, Smolkin ME, Deacon DH, Patterson JW, Chen L, Bullock TN, Slingluff CL
Oncoimmunology 2016;5(11):e1235107

PD-1 Blockade with Pembrolizumab in Advanced Merkel-Cell Carcinoma.

Nghiem PT, Bhatia S, Lipson EJ, Kudchadkar RR, Miller NJ, Annamalai L, Berry S, Chartash EK, Daud A, Fling SP, Friedlander PA, Kluger HM, Kohrt HE, Lundgren L, Margolin K, Mitchell A, Olencki T, Pardoll DM, Reddy SA, Shantha EM, Sharfman WH, Sharon E, Shemanski LR, Shinohara MM, Sunshine JC, Taube JM, Thompson JA, Townson SM, Yearley JH, Topalian SL, Cheever MA
The New England journal of medicine 2016 Jun 30;374(26):2542-52

Vaccine Induction of Lymph Node-Resident Simian Immunodeficiency Virus Env-Specific T Follicular Helper Cells in Rhesus Macaques.

Vargas-Inchaustegui DA, Demers A, Shaw JM, Kang G, Ball D, Tuero I, Musich T, Mohanram V, Demberg T, Karpova TS, Li Q, Robert-Guroff M
Journal of immunology (Baltimore, Md. : 1950) 2016 Feb 15;196(4):1700-10

Plasmacytoid dendritic cells promote HIV-1-induced group 3 innate lymphoid cell depletion.

Zhang Z, Cheng L, Zhao J, Li G, Zhang L, Chen W, Nie W, Reszka-Blanco NJ, Wang FS, Su L
The Journal of clinical investigation 2015 Sep;125(9):3692-703

Soluble co-signaling molecules predict long-term graft outcome in kidney-transplanted patients.

Melendreras SG, Martínez-Camblor P, Menéndez A, Bravo-Mendoza C, González-Vidal A, Coto E, Díaz-Corte C, Ruiz-Ortega M, López-Larrea C, Suárez-Álvarez B
PloS one 2014;9(12):e113396

Early lymphoid responses and germinal center formation correlate with lower viral load set points and better prognosis of simian immunodeficiency virus infection.

Hong JJ, Amancha PK, Rogers KA, Courtney CL, Havenar-Daughton C, Crotty S, Ansari AA, Villinger F
Journal of immunology (Baltimore, Md. : 1950) 2014 Jul 15;193(2):797-806

CD4 T follicular helper cell dynamics during SIV infection.

Petrovas C, Yamamoto T, Gerner MY, Boswell KL, Wloka K, Smith EC, Ambrozak DR, Sandler NG, Timmer KJ, Sun X, Pan L, Poholek A, Rao SS, Brenchley JM, Alam SM, Tomaras GD, Roederer M, Douek DC, Seder RA, Germain RN, Haddad EK, Koup RA
The Journal of clinical investigation 2012 Sep;122(9):3281-94

Modulation of T-cell activation by malignant melanoma initiating cells.

Schatton T, Schütte U, Frank NY, Zhan Q, Hoerning A, Robles SC, Zhou J, Hodi FS, Spagnoli GC, Murphy GF, Frank MH
Cancer research 2010 Jan 15;70(2):697-708

Early resolution of acute immune activation and induction of PD-1 in SIV-infected sooty mangabeys distinguishes nonpathogenic from pathogenic infection in rhesus macaques.

Estes JD, Gordon SN, Zeng M, Chahroudi AM, Dunham RM, Staprans SI, Reilly CS, Silvestri G, Haase AT
Journal of immunology (Baltimore, Md. : 1950) 2008 May 15;180(10):6798-807

Early resolution of acute immune activation and induction of PD-1 in SIV-infected sooty mangabeys distinguishes nonpathogenic from pathogenic infection in rhesus macaques.

Estes JD, Gordon SN, Zeng M, Chahroudi AM, Dunham RM, Staprans SI, Reilly CS, Silvestri G, Haase AT
Journal of immunology (Baltimore, Md. : 1950) 2008 May 15;180(10):6798-807

Soluble PD-1 rescues the proliferative response of simian immunodeficiency virus-specific CD4 and CD8 T cells during chronic infection.

Onlamoon N, Rogers K, Mayne AE, Pattanapanyasat K, Mori K, Villinger F, Ansari AA
Immunology 2008 Jun;124(2):277-93

Aberrant regulation of synovial T cell activation by soluble costimulatory molecules in rheumatoid arthritis.

Wan B, Nie H, Liu A, Feng G, He D, Xu R, Zhang Q, Dong C, Zhang JZ
Journal of immunology (Baltimore, Md. : 1950) 2006 Dec 15;177(12):8844-50

Aberrant regulation of synovial T cell activation by soluble costimulatory molecules in rheumatoid arthritis.

Wan B, Nie H, Liu A, Feng G, He D, Xu R, Zhang Q, Dong C, Zhang JZ
Journal of immunology (Baltimore, Md. : 1950) 2006 Dec 15;177(12):8844-50

No comments: Submit comment

Supportive validation

Submitted by: Novus Biologicals (provider)
Main image

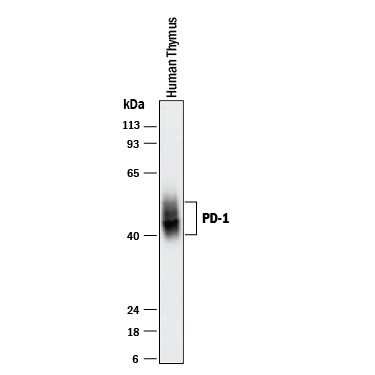

Experimental details: Detection of Human PD-1 by Western Blot. Western blot shows lysate of human thymus tissue. PVDF membrane was probed with 2 µg/mL of Goat Anti-Human PD-1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1086) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for PD-1 at approximately 40-50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Supportive validation

Submitted by: Novus Biologicals (provider)
Main image

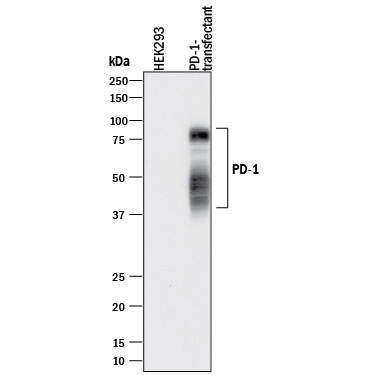

Experimental details: Detection of Human PD-1 by Western Blot. Western blot shows lysates of HEK293 human embryonic kidney cell line either mock transfected or transfected with human PD-1. PVDF membrane was probed with 0.5 µg/mL of Goat Anti-Human PD-1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1086) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for PD-1 at approximately 40-80 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Supportive validation

Submitted by: Novus Biologicals (provider)
Main image
Experimental details: PD-1 in Human Lymph Node. PD-1 was detected in immersion fixed paraffin-embedded sections of human lymph node using Goat Anti-Human PD-1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1086) at 3 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). Specific staining was localized to lymphocytes. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Supportive validation

Submitted by: Novus Biologicals (provider)
Main image

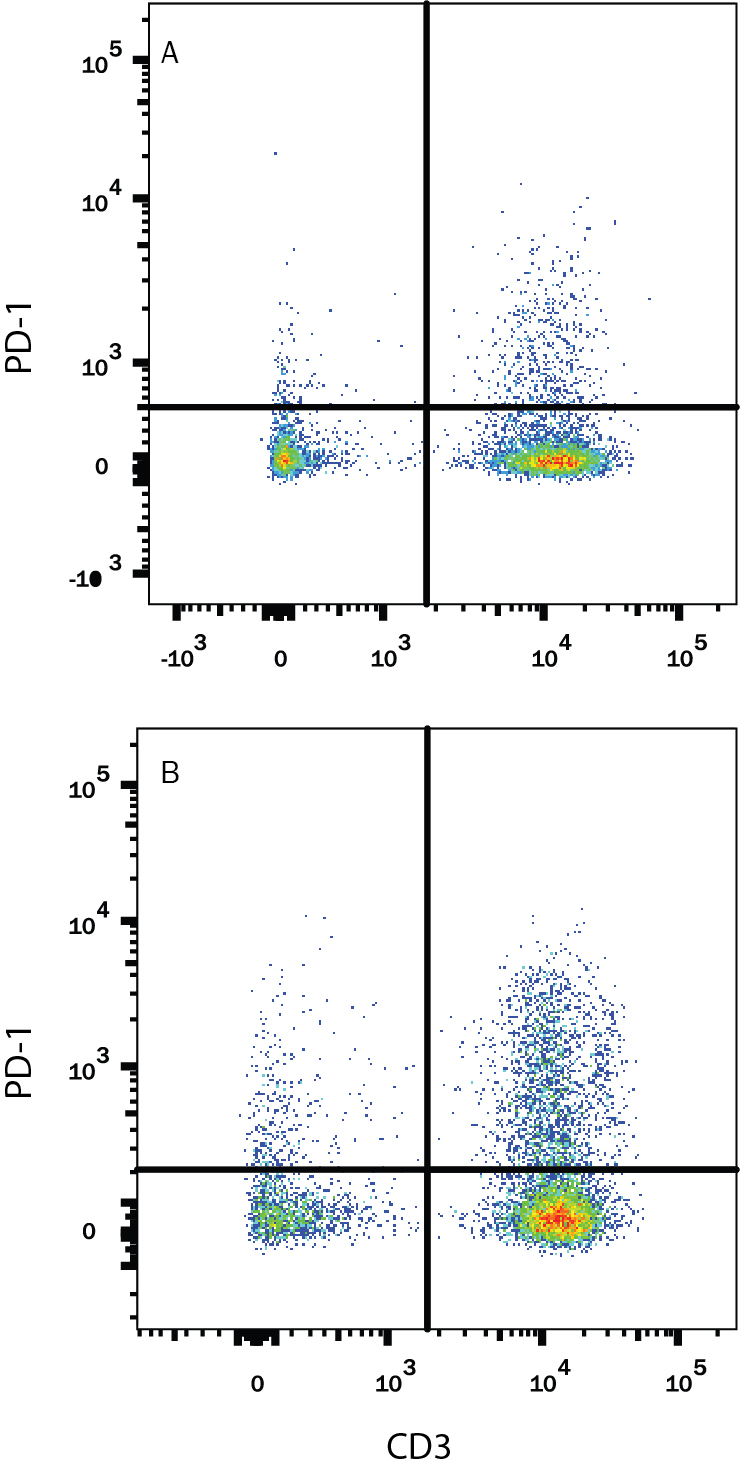

Experimental details: Detection of PD-1 in Human PBMCs treated with PHA by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) either (A) untreated or (B) treated with 5 μg/mL PHA overnight were stained with Goat Anti-Human PD-1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1086) followed by Phycoerythrin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0107) and Mouse Anti-Human CD3 epsilon APC-conjugated Monoclonal Antibody (Catalog # FAB100A). Quadrant markers were set based on control antibody staining (Catalog # F0107). View our protocol for Staining Membrane-associated Proteins.
