A01708-3

antibody from Boster Biological Technology

Targeting: PRKG1 PGK, PKG, PKG1, PRKG1B, PRKGR1B

Western blot (Supportive data in Antibodypedia)

ELISA (Data presented on provider website)

Immunocytochemistry (Data presented on provider website)

Immunohistochemistry (Data presented on provider website)

Flow cytometry (Data presented on provider website)

Antibody Data

Product number

A01708-3

Provider

Boster Biological Technology

Product name

Anti-cGKI/PRKG1 Antibody Picoband™

Antibody type

Polyclonal

Description

Rabbit IgG polyclonal antibody for cGKI/PRKG1 detection. Tested with WB, IHC-P, ICC/IF, FCM, Direct ELISA in Human;Mouse;Rat.

Reactivity

Human, Mouse, Rat

Host

Rabbit

Vial size

100μg/vial

Concentration

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Storage

At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.

Handling

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Western blot

Supportive validation

Submitted by

Boster Biological Technology (provider)

Main image

Experimental details

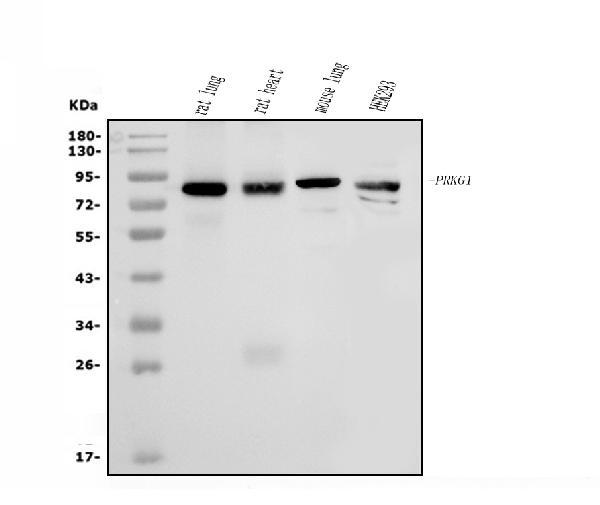

Western blot analysis of CGKI/PRKG1 using anti-CGKI/PRKG1 antibody (A01708-3). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions. Lane 1: rat lung tissue lysates, Lane 2: rat heart tissue lysates, Lane 3: mouse lung tissue lysates, Lane 4: human HEK293 whole cell lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CGKI/PRKG1 antigen affinity purified polyclonal antibody (Catalog # A01708-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for CGKI/PRKG1 at approximately 78KD. The expected band size for CGKI/PRKG1 is at 78KD.

Additional image
