- Product number
- MA5-29374 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- IVD Monoclonal Antibody (4)
- Antibody type
- Monoclonal
- Antigen
- Recombinant full-length protein
- Description
- This product is preservative free. It is recommended to add sodium azide to avoid contamination (final concentration 0.05%-0.1%).
- Antibody clone number
- 4
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis of IVD in Lane A: Jurkat Whole Cell Lysate (30 µg), Lane B: Hela Whole Cell Lysate (30 µg) . Samples were probed using a IVD Monoclonal Antibody (Product # MA5-29374) at a 1:500 dilution, followed by a Goat Anti-Mouse IgG (H+L), Dylight 800 Secondary Antibody at a 1:15000 dilution. Western blot was performed under reducing conditions. Predicted band size:47 kDa. Observed band size:40 kDa.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western Blot using IVD Monoclonal Antibody (4) (Product # MA5-29374) at 1:500 dilution. Lane A: Jurkat Whole Cell Lysate, Lane B: Hela Whole Cell Lysate. Lysates/proteins at 30 μg per lane. Secondary Goat Anti-Mouse IgG H&L (DyLight™ 800) at 1:15,000 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 47 kDa. Observed band size: 40 kDa.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescence staining of Human IVD in Hela cells. Cells were fixed with 4% PFA, permeabilzed with 0.3% Triton X-100 in PBS, blocked with 10% serum, and incubated with IVD Monoclonal Antibody (4) (Product # MA5-29374, 1:300) at 37°C 1 hour. Then cells were stained with the Alexa Fluor® 488-conjugated Goat Anti-mouse IgG secondary antibody (green) and counterstained with DAPI (blue). Positive staining was localized to cytoplasm.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Flow cytometric analysis of Human IVD expression on HeLa cells. The cells were treated according to manufacturer’s manual, stained with IVD Monoclonal Antibody (4) (Product # MA5-29374), then a FITC-conjugated Secondary antibody. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

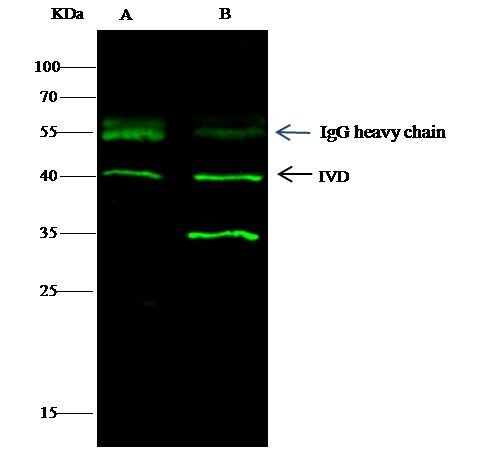

- IVD Immunoprecipitation using: Lane A: 0.5 mg Jurkat Whole Cell Lysate, Lane B: 0.5 mg A549 Whole Cell Lysate 0.5 µL with IVD Monoclonal Antibody (4) (Product # MA5-29374) and 15 µL of 50 % Protein G agarose. Primary antibody: IVD Monoclonal Antibody (4), at 1:500 dilution. Secondary antibody: Dylight 800-labeled antibody to Mouse IgG (H+L), at 1:7,500 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 40 kDa. Observed band size: 40 kDa.
