Antibody data
- Antibody Data
- Antigen structure
- References [2]
- Comments [0]
- Validations
- Western blot [2]
- Other assay [1]
Submit
Validation data
Reference
Comment
Report error
- Product number
- PA5-47534 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- NOMO1 Polyclonal Antibody
- Antibody type
- Polyclonal
- Antigen
- Recombinant full-length protein
- Description
- Reconstitute at 0.2 mg/mL in sterile PBS.
- Reactivity
- Human
- Host
- Goat
- Isotype
- IgG
- Vial size
- 100 µg
- Concentration
- 0.2 mg/mL
- Storage
- -20° C, Avoid Freeze/Thaw Cycles
Submitted references Substrate-driven assembly of a translocon for multipass membrane proteins.
An ER translocon for multi-pass membrane protein biogenesis.
Sundaram A, Yamsek M, Zhong F, Hooda Y, Hegde RS, Keenan RJ
Nature 2022 Nov;611(7934):167-172
Nature 2022 Nov;611(7934):167-172
An ER translocon for multi-pass membrane protein biogenesis.
McGilvray PT, Anghel SA, Sundaram A, Zhong F, Trnka MJ, Fuller JR, Hu H, Burlingame AL, Keenan RJ
eLife 2020 Aug 21;9
eLife 2020 Aug 21;9
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

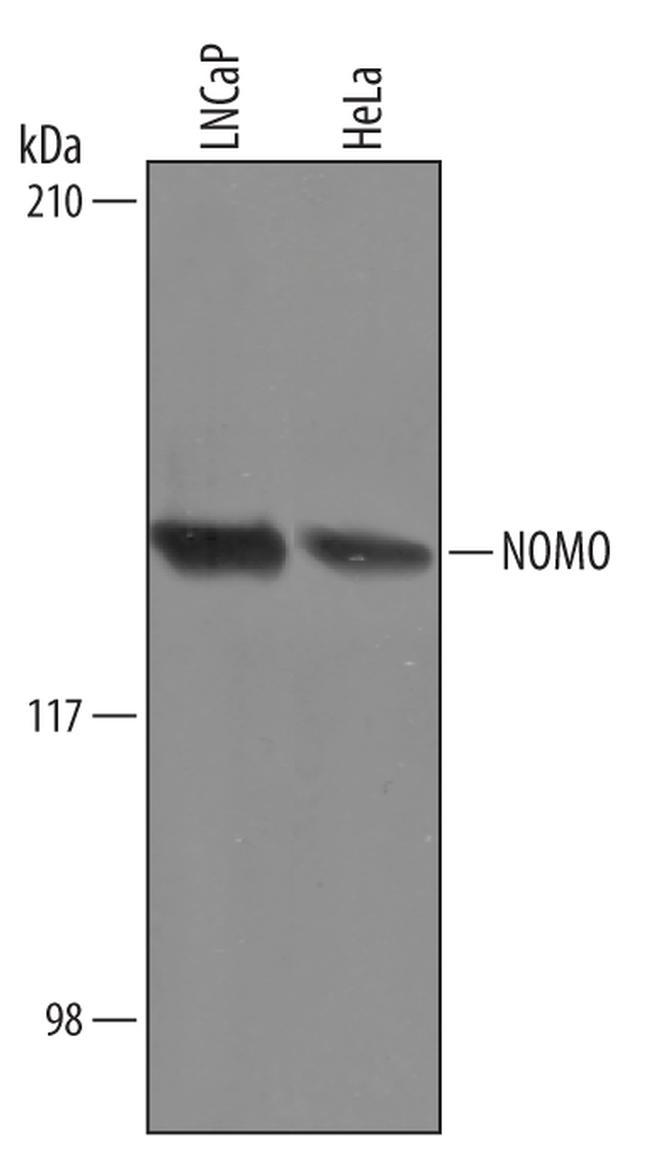

- Western blot analysis from lysates of LNCaP human prostate cancer cell line and HeLa human cervical epithelial carcinoma cell line. PVDF Membrane was probed with 1 µg/mL of Goat Anti-human NOMO Antigen Affinity-purified Polyclonal Antibody (Product # PA5-47534) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody. A specific band was detected for NOMO at approximately 130 kDa (as indicated). This experiment was conducted under reducing conditions.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis of NOMO1 in LNCaP human prostate cancer cell line and HeLa human cervical epithelial carcinoma cell line. Samples were incubated in NOMO1 polyclonal antibody (Product # PA5-47534) using a dilution of 1 µg/mL followed by a HRP-conjugated Anti-Goat IgG secondary antibody. A specific band was detected for NOMO at approximately 130 kDa (as indicated). This experiment was conducted under reducing conditions.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

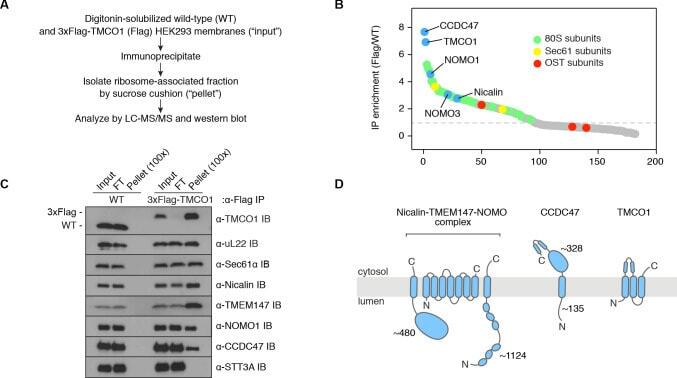

- Figure 1. Natively isolated TMCO1-ribosome complexes contain multiple transmembrane components. ( A ) Emetine- and micrococcal nuclease-treated membranes from wild-type (WT) or 3xFlag-TMCO1 (Flag) HEK293 cells were digitonin-solubilized, immunoprecipitated via the 3xFlag tag on TMCO1, and the eluate sedimented through a sucrose cushion to isolate the ribosome-associated fraction for analysis. ( B ) Proteins enriched in the ribosomal fraction after immunoprecipitation from 3xFlag-TMCO1 or wild-type membranes. ( C ) Top hits were confirmed by western blotting. The catalytic STT3A subunit of the OST complex is not detected. ( D ) Topology and domain structure for the top hits, based on Uniprot annotation, homology modeling, de novo structure prediction (in RaptorX-Contact), and experimental mapping; the Sec61 complex is not shown. Distinguishing features include the large globular luminal domain of Nicalin (in contrast with the flexible luminal domains of NOMO and CCDC47), the large globular cytosolic domain of CCDC47 (with a conserved C-terminal coiled-coil), and a conserved cytosolic coiled-coil between the first two TMDs of TMCO1. TMEM147 is the core, multi-pass subunit of the Nicalin-TMEM147-NOMO complex ; note that the short extra-membrane loops of TMEM147 make it difficult to detect by mass spectrometry. Figure 1--figure supplement 1. Additional interaction analysis of the TMCO1 translocon components. ( A ) Comparison of co-purifying components in the ribosome-bound fracti
