Validation data
Reference
Comment
Report error
- Product number
- LS-C773679 - Provider product page
- Provider
- LSBio
- Product name
- SCN2B Antibody (clone S395-68, AP) LS-C773679
- Antibody type
- Monoclonal
- Description
- Protein G purified
- Reactivity
- Human, Mouse, Rat
- Host
- Mouse
- Conjugate
- Alkaline Phosphatase
- Isotype
- IgG
- Antibody clone number
- S395-68
- Storage
- Store at -20°C.
No comments: Submit comment
Supportive validation
- Submitted by
- LSBio (provider)
- Main image
- Experimental details

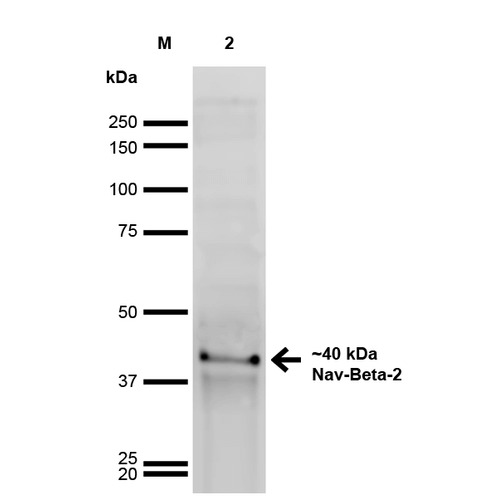

- Western Blot analysis of Rat Brain showing detection of ~40 kDa Nav-Beta-2 protein using Mouse Anti-Nav-Beta-2 Monoclonal Antibody, Clone S395-68. Lane 1: MW Ladder. Lane 2: Rat Brain. Load: 20 µg. Block: 2% GE Healthcare Blocker for 1 hour at RT. Primary Antibody: Mouse Anti-Nav-Beta-2 Monoclonal Antibody at 1:1000 for 16 hours at 4°C. Secondary Antibody: Goat Anti-Mouse IgG: HRP at 1:200 for 1 hour at RT. Color Development: ECL solution for 6 min at RT. Predicted/Observed Size: ~40 kDa.
Supportive validation
- Submitted by
- LSBio (provider)
- Main image
- Experimental details

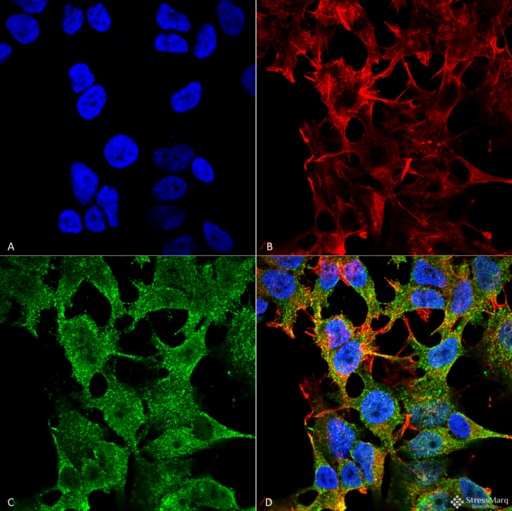

- Immunocytochemistry/Immunofluorescence analysis using Mouse Anti-Nav beta 2 Monoclonal Antibody, Clone S395-68. Tissue: Neuroblastoma cell line (SK-N-BE). Species: Human. Fixation: 4% Formaldehyde for 15 min at RT. Primary Antibody: Mouse Anti-Nav beta 2 Monoclonal Antibody at 1:100 for 60 min at RT. Secondary Antibody: Goat Anti-Mouse ATTO 488 at 1:100 for 60 min at RT. Counterstain: Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1000, 1:5000 for 60min RT, 5min RT. Localization: Membrane. Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) Nav beta 2 Antibody. (D) Composite.
