AF7630

antibody from R&D Systems

Targeting: TMED10 p23, P24(DELTA), p24d1, p24delta1, TMP21

Western blot (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Antibody Data

Product number

AF7630

Provider

R&D Systems

Product name

Human/Mouse Tmp21/p23 Antibody

Antibody type

Polyclonal

Description

Antigen Affinity-purified. Detects human and mouse in direct ELISAs and Western blots.

Reactivity

Human, Mouse

Host

Sheep

Conjugate

Unconjugated

Antigen sequence

P49755


Isotype

IgG

Vial size

100 ug

Concentration

LYOPH

Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Western blot

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

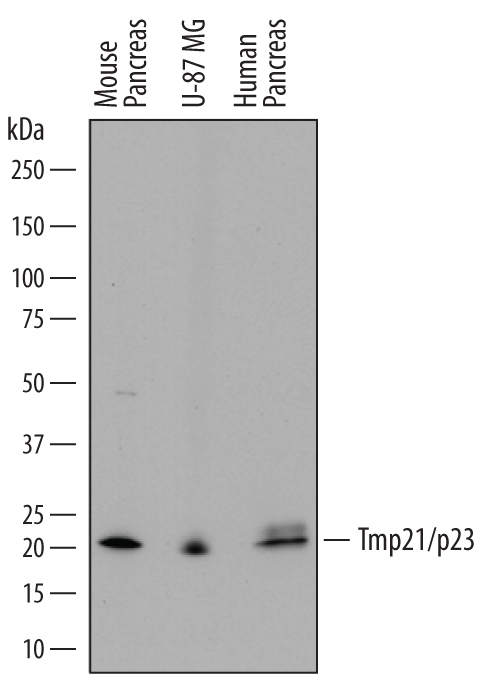

Detection of Human and Mouse Tmp21/p23 by Western Blot. Western blot shows lysates of mouse pancreas tissue, U-87 MG human glioblastoma/astrocytoma cell line, and human pancreas tissue. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Tmp21/p23 at approximately 21 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

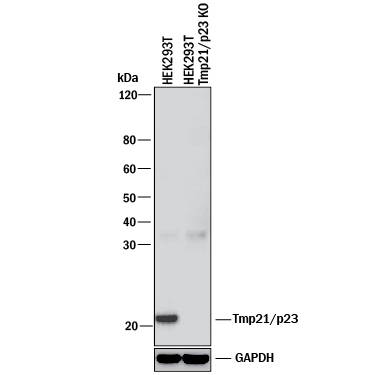

Western Blot Shows Human Tmp21/p23 Specificity by Using Knockout Cell Line. Western blot shows lysates of HEK293T human embryonic kidney parental cell line and Tmp21/p23 knockout HEK293T cell line (KO). PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Tmp21/p23 at approximately 23 kDa (as indicated) in the parental HEK293T cell line, but is not detectable in knockout HEK293T cell line. GAPDH (Catalog # AF5718) is shown as a loading control. This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Immunohistochemistry

Supportive validation

Submitted by

R&D Systems (provider)

Main image

Experimental details

Tmp21/p23 in Human Alzheimer's Brain. Tmp21/p23 was detected in immersion fixed paraffin-embedded sections of human Alzheimer's brain using Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) at 1 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm in glial cells. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.
