Antibody data
- Antibody Data
- Antigen structure
- References [0]
- Comments [0]
- Validations
- Western blot [3]
- Immunocytochemistry [2]
- Immunohistochemistry [1]
Submit
Validation data
Reference
Comment
Report error
- Product number
- PA5-22048 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- RAG2 Polyclonal Antibody
- Antibody type
- Polyclonal
- Antigen
- Recombinant protein fragment
- Description
- Recommended positive controls: Molt-4, rat thymus.
- Concentration
- 1.01 mg/mL
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis was performed on modified whole cell extracts (1% SDS) (30 µg lysate) of Jurkat (Lane 1), Ramos (Lane 2), Hep G2 (Lane 3), HeLa (Lane 4) and MOLT-4 (Lane 5). The blot was probed with Anti-RAG2 Polyclonal Antibody (Product # PA5-22048, 1:500 dilution) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.25 µg/mL, 1:4000 dilution). A 55 kDa band corresponding to RAG2 was observed in all cell lines along with additional uncharacterized bands (*) between ~70 kDa and ~110 kDa.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western Blot using RAG2 Polyclonal Antibody (Product # PA5-22048). Sample (30 µg of whole cell lysate). Lane A: Molt-4 . 7.5% SDS PAGE. RAG2 Polyclonal Antibody (Product # PA5-22048) diluted at 1:1,000.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- RAG2 Polyclonal Antibody detects RAG2 protein by Western blot analysis. A. 50 µg Rat thymus lysate/extract.7.5 % SDS-PAGE. RAG2 Polyclonal Antibody (Product # PA5-22048) dilution: 1:1,000.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

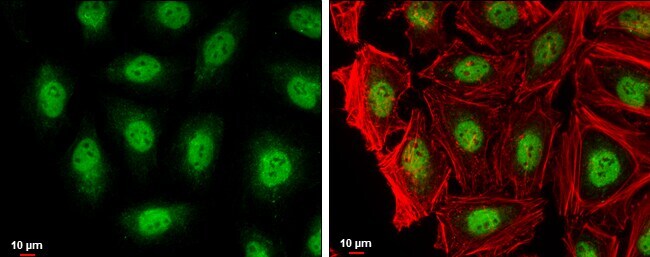

- RAG2 Polyclonal Antibody detects RAG2 protein at nucleus by immunofluorescent analysis. Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min. Green: RAG2 protein stained by RAG2 Polyclonal Antibody (Product # PA5-22048) diluted at 1:500. Red: Phalloidin, a cytoskeleton marker, diluted at 1:200. Scale bar = 10 µm.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

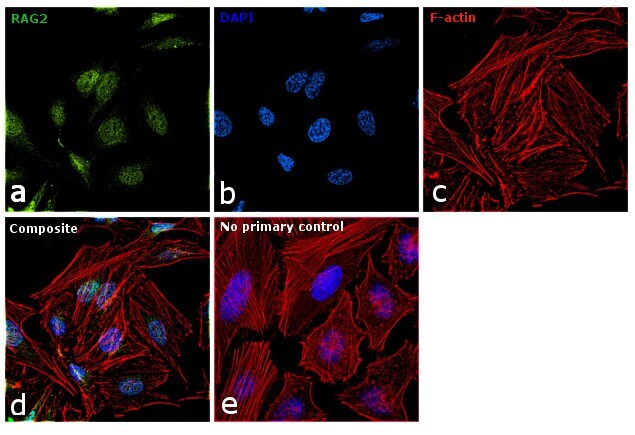

- Immunofluorescence analysis of RAG2 was performed using 70% confluent log phase HeLa cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 15 minutes, and blocked with 1% BSA for 1 hour at room temperature. The cells were labeled with RAG2 Polyclonal Antibody (Product # PA5-22048) at 1:200 dilution in 0.1% BSA, incubated at 4 degree Celsius overnight and then labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034) for 45 minutes at room temperature (Panel a: green). Nuclei (Panel b: blue) were stained with ProLong™ Diamond Antifade Mountant with DAPI (Product # P36962). F-actin (Panel c: red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing predominant nuclear localization along with weak cytoplasmic signal. Panel e represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemical analysis of paraffin-embedded DLD1 Xenograft, using RAG2 (Product # PA5-22048) antibody at 1:100 dilution. Antigen Retrieval: EDTA based buffer, pH 8.0, 15 min.
