A03980-3

antibody from Boster Biological Technology

Targeting: MAP2K5 HsT17454, MAPKK5, MEK5, PRKMK5

Western blot (Supportive data in Antibodypedia)

ELISA (Data presented on provider website)

Immunocytochemistry (Data presented on provider website)

Immunohistochemistry (Data presented on provider website)

Flow cytometry (Data presented on provider website)

Antibody Data

Product number

A03980-3

Provider

Boster Biological Technology

Product name

Anti-MEK5/MAP2K5 Antibody Picoband™

Antibody type

Polyclonal

Description

Rabbit IgG polyclonal antibody for MEK5/MAP2K5 detection. Tested with WB, IHC-P, ICC/IF, FCM, Direct ELISA in Human;Monkey;Rat.

Reactivity

Human, Rat, Simian

Host

Rabbit

Vial size

100μg/vial

Concentration

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Storage

At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.

Handling

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Western blot

Supportive validation

Submitted by

Boster Biological Technology (provider)

Main image

Experimental details

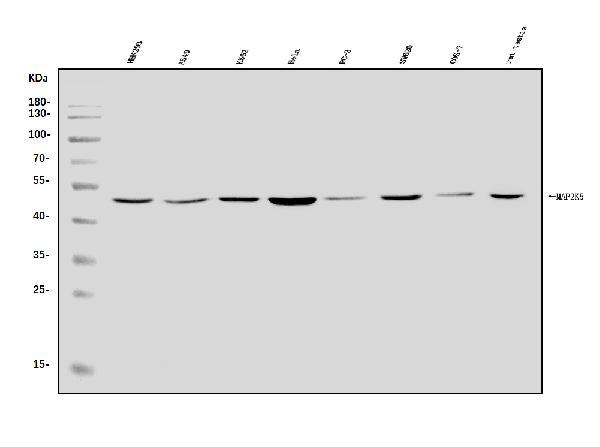

Western blot analysis of MEK5/MAP2K5 using anti-MEK5/MAP2K5 antibody (A03980-3). Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30ug of sample under reducing conditions. Lane 1: human HEK293 whole cell lysates, Lane 2: human A549 whole cell lysates, Lane 3: human K562 whole cell lysates, Lane 4: human A549 whole cell lysates, Lane 5: human Hela whole cell lysates, Lane 6: human PC-3 whole cell lysates, Lane 7: human SW620 whole cell lysates, Lane 8: monkey COS-7 whole cell lysates, Lane 9: rat testis tissue lysates. After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MEK5/MAP2K5 antigen affinity purified polyclonal antibody (Catalog # A03980-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for MEK5/MAP2K5 at approximately 50KD. The expected band size for MEK5/MAP2K5 is at 50KD.

Additional image
