A03533-1

antibody from Boster Biological Technology

Targeting: DVL1

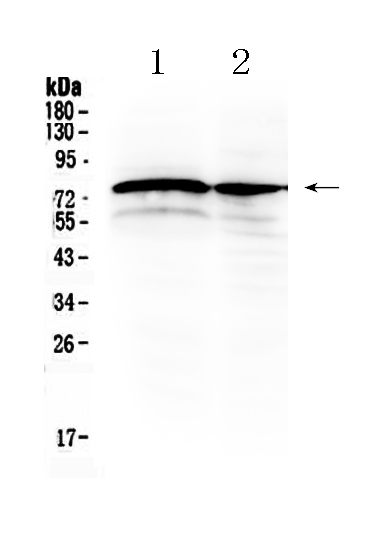

Western blot (Data presented on provider website)

Immunohistochemistry (Supportive data in Antibodypedia)

Antibody Data

Product number

A03533-1

Provider

Boster Biological Technology

Product name

Anti-Dishevelled/Dvl1 Antibody Picoband™

Antibody type

Polyclonal

Description

Polyclonal antibody for Dishevelled 1/DVL1 detection. Host: Rabbit.Size: 100μg/vial. Tested applications: IHC-P. Reactive species: Human. Dishevelled 1/DVL1 information: Molecular Weight: 75187 MW; Subcellular Localization: Cell membrane ; Peripheral membrane protein ; Cytoplasmic side . Cytoplasm, cytosol . Cytoplasmic vesicle . Localizes at the cell membrane upon interaction with frizzled family members.

Reactivity

Human, Rat

Host

Rabbit

Vial size

100μg/vial

Concentration

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Storage

At -20°C for one year. After reconstitution, at 4°C for one month. It can also be aliquoted and stored frozen at -20°C for a longer time. Avoid repeated freezing and thawing.

Handling

Add 0.2ml of distilled water will yield a concentration of 500ug/ml.

Immunohistochemistry

Supportive validation

Submitted by

Boster Biological Technology (provider)

Main image

Experimental details

IHC analysis of DVL1 using anti- DVL1 antibody (A03533-1). DVL1 was detected in paraffin-embedded section of human lung cancer tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti- DVL1 Antibody (A03533-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB as the chromogen.

Additional image
