17711-1-AP

antibody from Invitrogen Antibodies

Targeting: ARL13B ARL2L1, DKFZp761H079, JBTS8

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

17711-1-AP

Provider

Invitrogen Antibodies

Product name

ARL13B Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Other

Description

This antibody detects two specific bands at 60 kDa and 48 kDa. Arl13b is predicted to be a 48 kDa protein, and the 60 kDa band is likely to represent a modified form of Arl13b. ARL13B can be used to mark the cilia.

Concentration

0.27 mg/mL

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

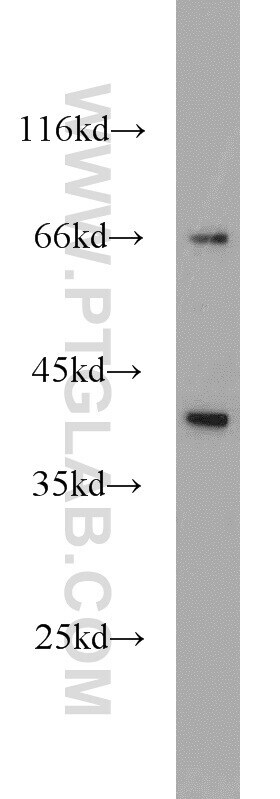

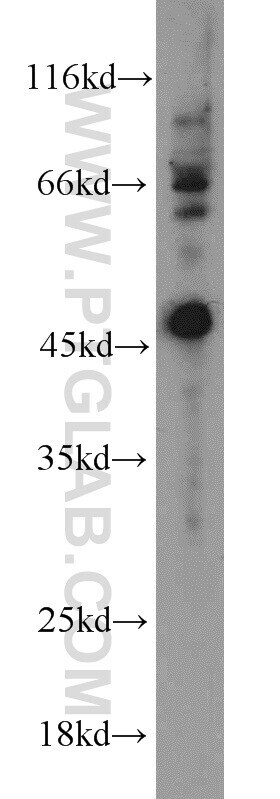

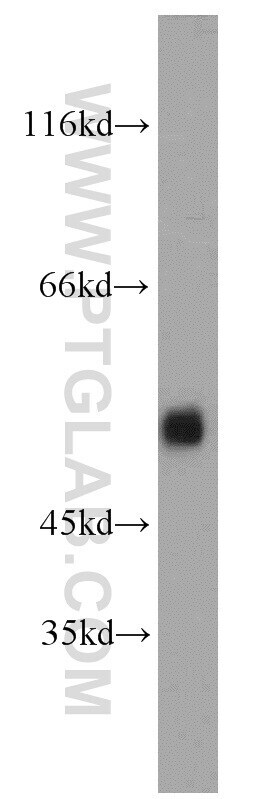

Mouse kidney tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

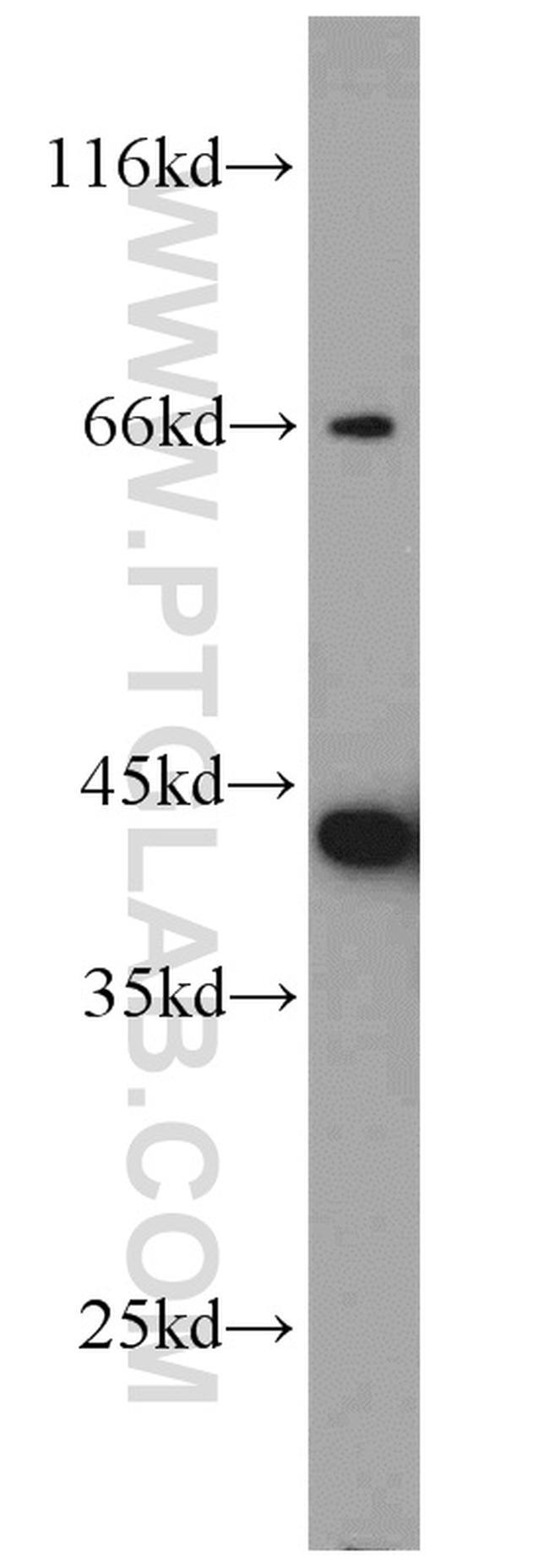

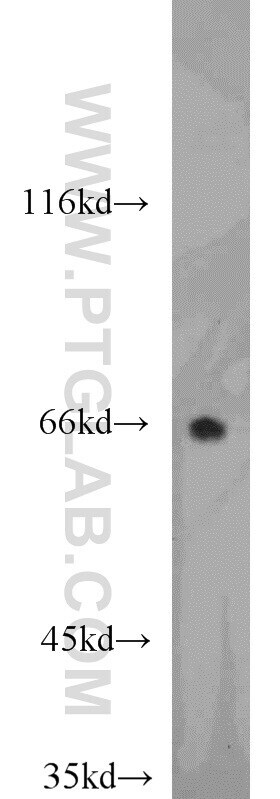

L02 cells were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Mouse liver tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

NIH/3T3 cells were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Mouse brain tissue were subjected to SDS PAGE followed by western blot with 17711-1-AP (ARL13B antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

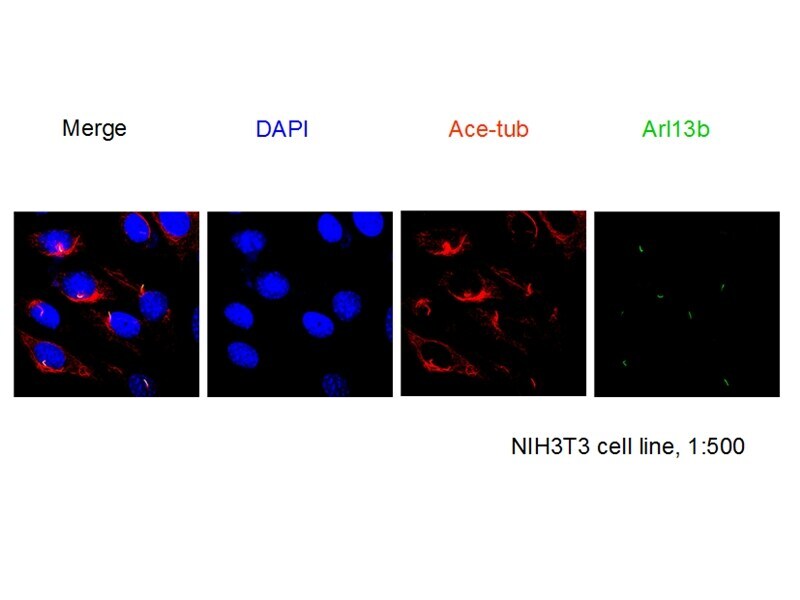

IF result of anti-ARL13B (17711-1-AP) in NIH3T3 cell by Dr. Sudipto.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

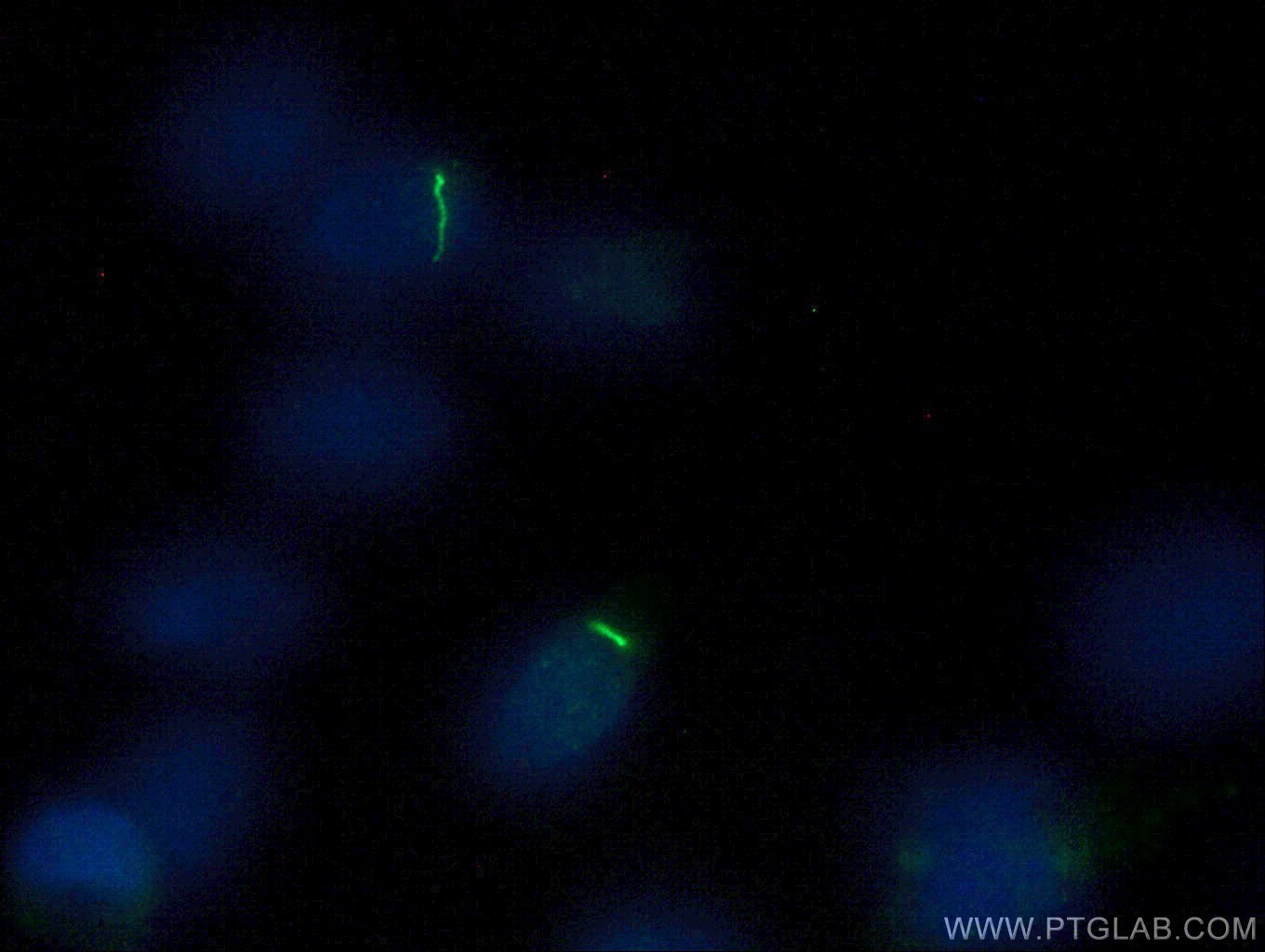

Immunofluorescent analysis of (4% PFA) fixed MDCK cells using 17711-1-AP (ARL13B antibody) at dilution of 1:200 and Alexa Fluor 488-Conjugated AffiniPure Goat Anti-Rabbit IgG (H+L).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

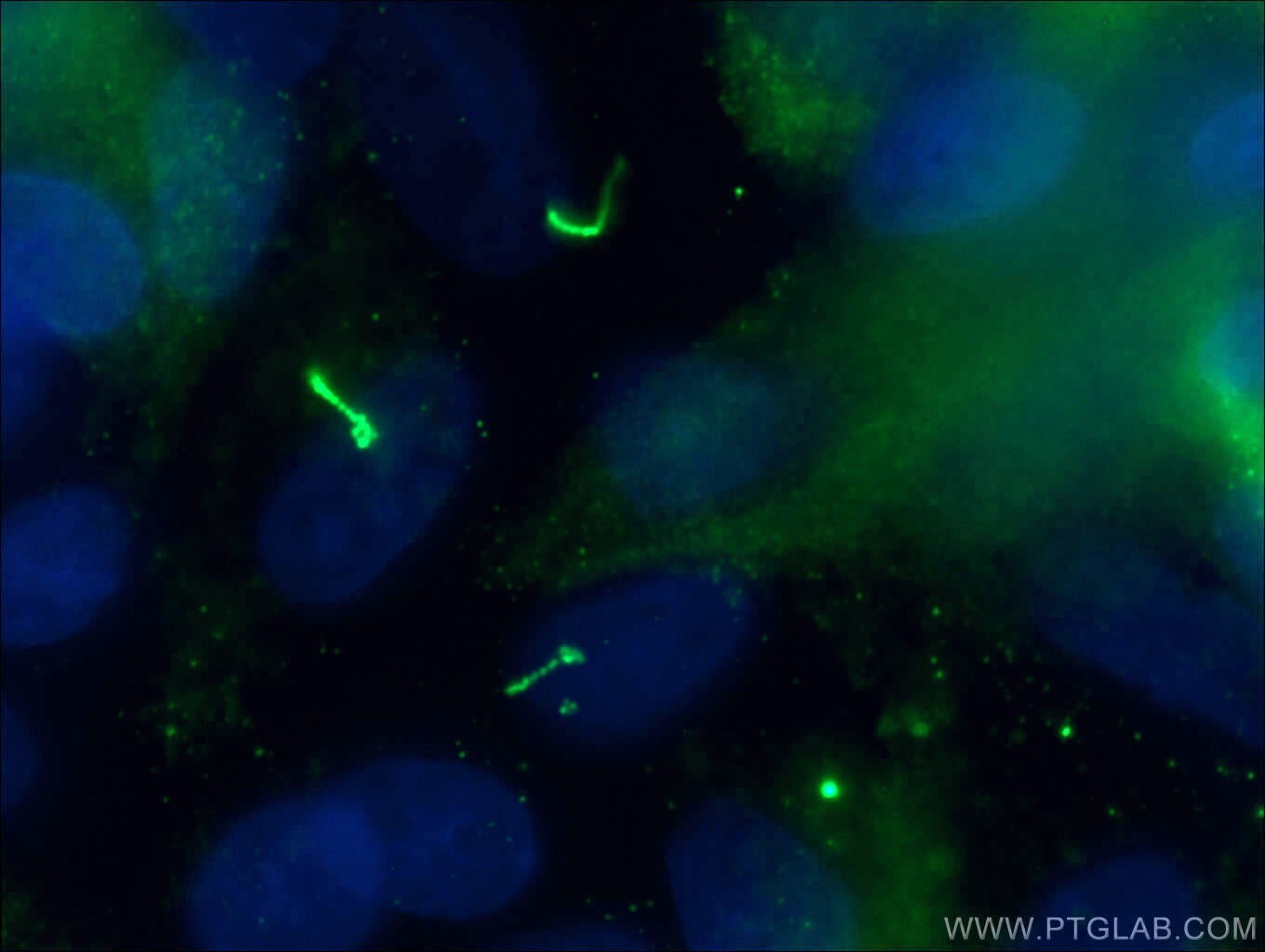

Immunofluorescent analysis of (4% PFA) fixed MDCK cells using 17711-1-AP (ARL13B antibody) at dilution of 1:50 and Alexa Fluor 488-Conjugated AffiniPure Goat Anti-Rabbit IgG (H+L).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

IF result of ARL13B antibody (17711-1-AP) in hTERT-RPE cell fixed with 4% PFA or Methanol.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

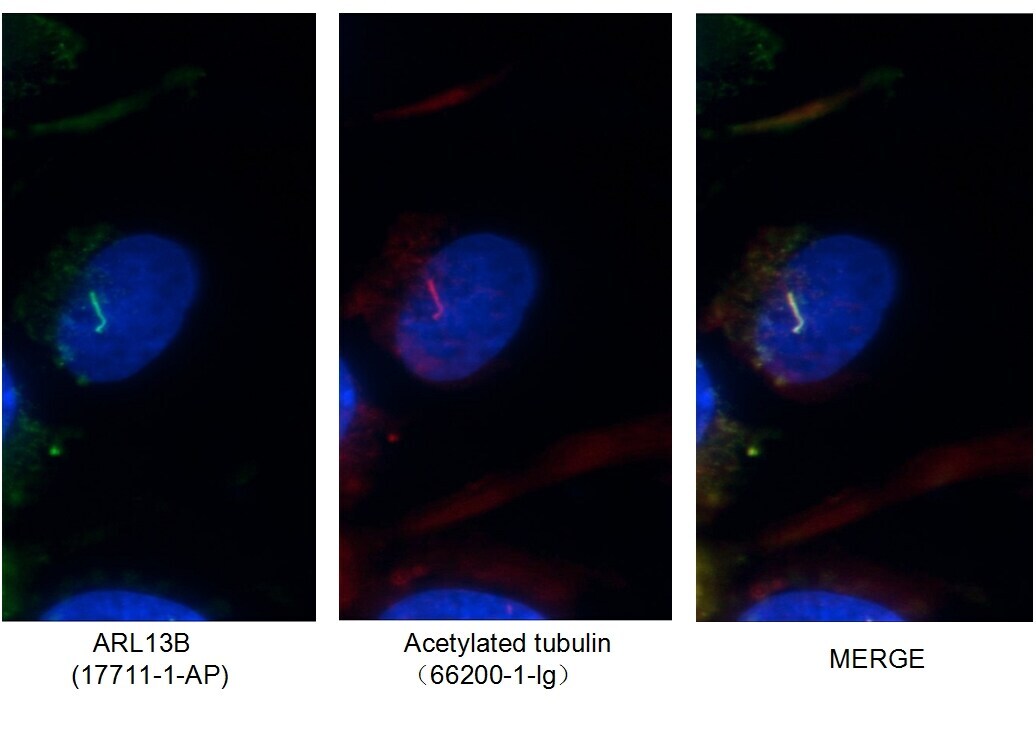

Immunofluorescent images of MDCK cells stained with ARL13B rabbit pAb (17711-1-AP) and acetylated tubulin mouse mAb (66200-1-Ig) at dilution of 1:50, further stained with Alexa Fluor 488-conjugated AffiniPure-Goat anti-Rabbit IgG (H+L) for 17711-1-AP, and Alexa Fluor 594-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) for 66200-1-Ig.

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

IF result from Dr. Corbit, Kevin. anti-ARL13B (17711-1-AP) mark the cilium of Mouse embryonic fibroblasts.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

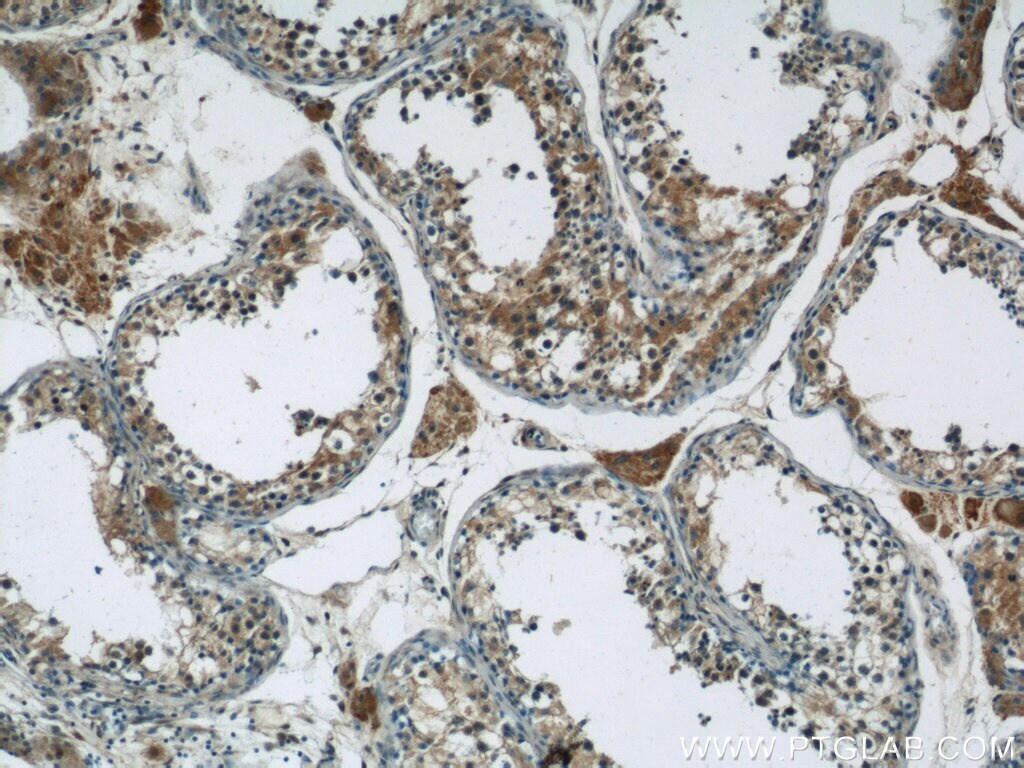

Immunohistochemistry of paraffin-embedded human testis tissue slide using 17711-1-AP (ARL13B Antibody) at dilution of 1:50 (under 10x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human testis tissue slide using 17711-1-AP (ARL13B Antibody) at dilution of 1:50 (under 40x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human liver using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 10x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human liver using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 40x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 10x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded human kidney using 17711-1-AP (ARL13B antibody) at dilution of 1:50 (under 40x lens).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

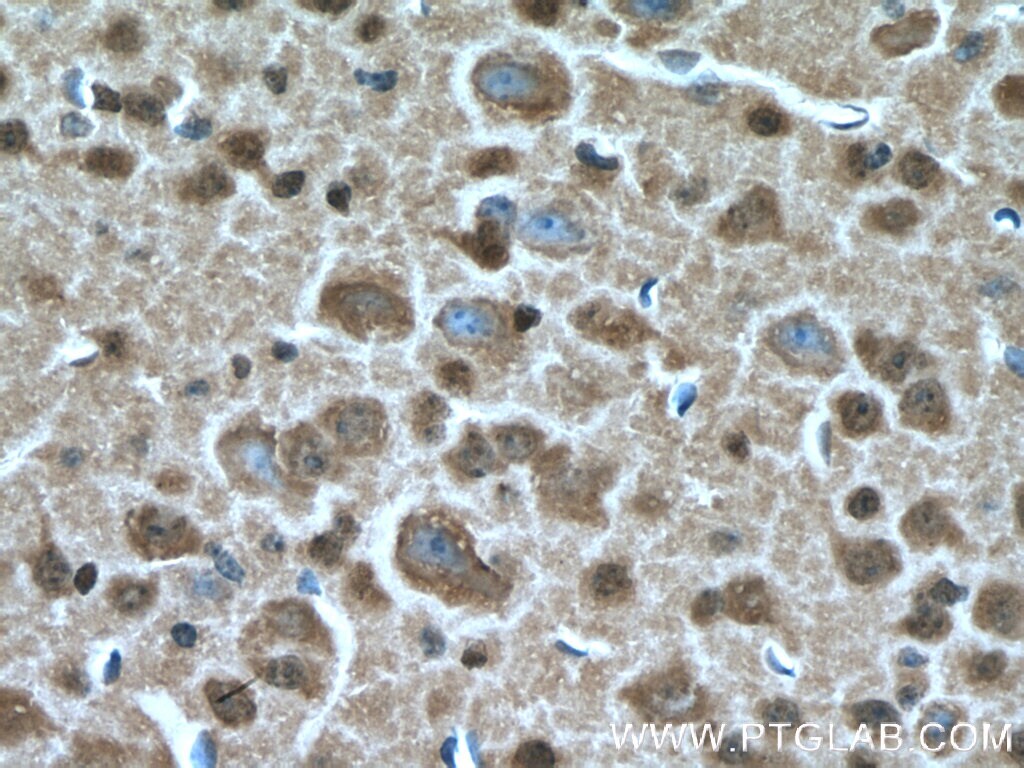

Immunohistochemistry of paraffin-embedded mouse brain tissue slide using 17711-1-AP ( ARL13B Antibody) at dilution of 1:200 (under 10x lens). heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry of paraffin-embedded mouse brain tissue slide using 17711-1-AP ( ARL13B Antibody) at dilution of 1:200 (under 40x lens). heat mediated antigen retrieved with Tris-EDTA buffer (pH 9).

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

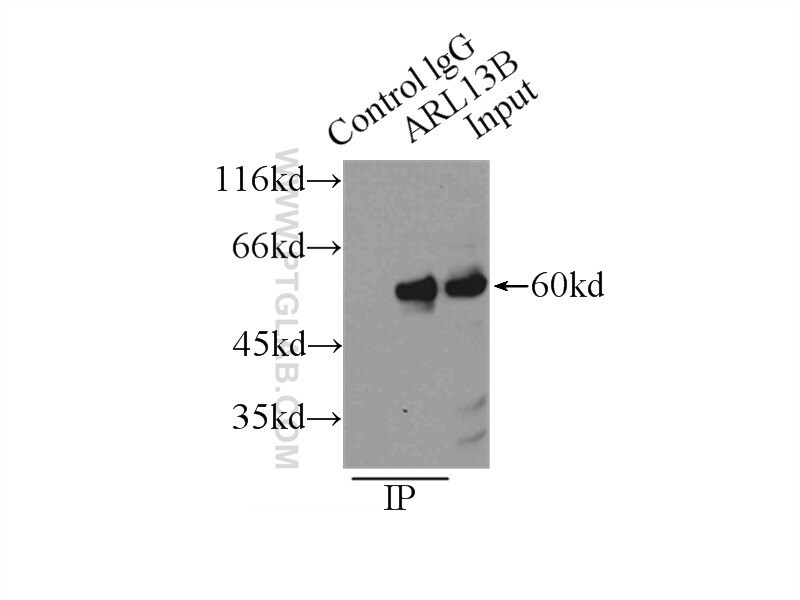

IP result of anti-ARL13B (IP:17711-1-AP, 3ug; Detection:17711-1-AP 1:1000) with L02 cells lysate 2500ug.
