GTX54789

antibody from GeneTex

Targeting: KCNH2 erg1, HERG, Kv11.1, LQT2

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Supportive data in Antibodypedia)

Immunohistochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Antibody Data

Product number

GTX54789

Provider

GeneTex

Product name

Kv11.1 antibody

Antibody type

Polyclonal

Reactivity

Human, Rat

Host

Rabbit

Western blot

Supportive validation

Submitted by

GeneTex (provider)

Main image

Experimental details

WB analysis of Kv11.1 transfected HEK293 lysates using Kv11.1 antibody at a dilution of 1:200 in the (1) absence or (2) presence of blocking peptide.

Immunocytochemistry

Supportive validation

Submitted by

GeneTex (provider)

Main image

Experimental details

ICC/IF analysis of Kv11.1 transfected HEK293 cells using Kv11.1 antibody at a dilution of 1:25 (red) in the absence (left) or presence (right) of blocking peptide. Nuclei were stained with Hoechst 33342 (blue).

Immunoprecipitation

Supportive validation

Submitted by

GeneTex (provider)

Main image

Experimental details

IP analysis was performed with Kv11.1 expressing HEK293 lysates and Kv11.1 antibodies GTX54785 (lane 2), GTX54776 (lane 3), GTX54789 (lane 4) or pre-immune serum (lane 5). Control lysate (lane 1) and the precipitates were detected by GTX54789. Red arrow indicates Kv11.1 while the black arrow shows the IgG heavy chain.

Immunohistochemistry

Supportive validation

Submitted by

GeneTex (provider)

Main image

Experimental details

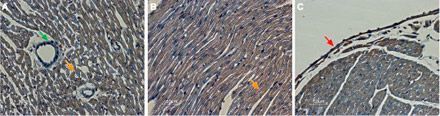

IHC analysis of rat heart using Kv11.1 antibody. (A) Transversal section of the atrium wall; note that arterial smooth muscle fibers were not stained (green arrow). (B) Longitudinal section of the myocardium. C. Section showing myocardium and endocardium (red arrow). DAB product is brown and the counterstain is cresyl violet.

Flow cytometry

Supportive validation

Submitted by

GeneTex (provider)

Main image

Experimental details

FACS analysis of K562 cells using Kv11.1 antibody (black) or an isotype control (green).
