- Product number
- MA5-14848 - Provider product page
- Provider
- Invitrogen Antibodies
- Product name
- Bim Monoclonal Antibody (K.912.7)
- Antibody type
- Monoclonal
- Antigen
- Synthetic peptide
- Description
- It is not recommended to aliquot this antibody.
- Reactivity
- Human, Mouse, Rat
- Host
- Rabbit
- Isotype
- IgG
- Antibody clone number
- K.912.7
- Vial size
- 100 µL
- Concentration
- 88 µg/mL
- Storage
- -20°C
No comments: Submit comment
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

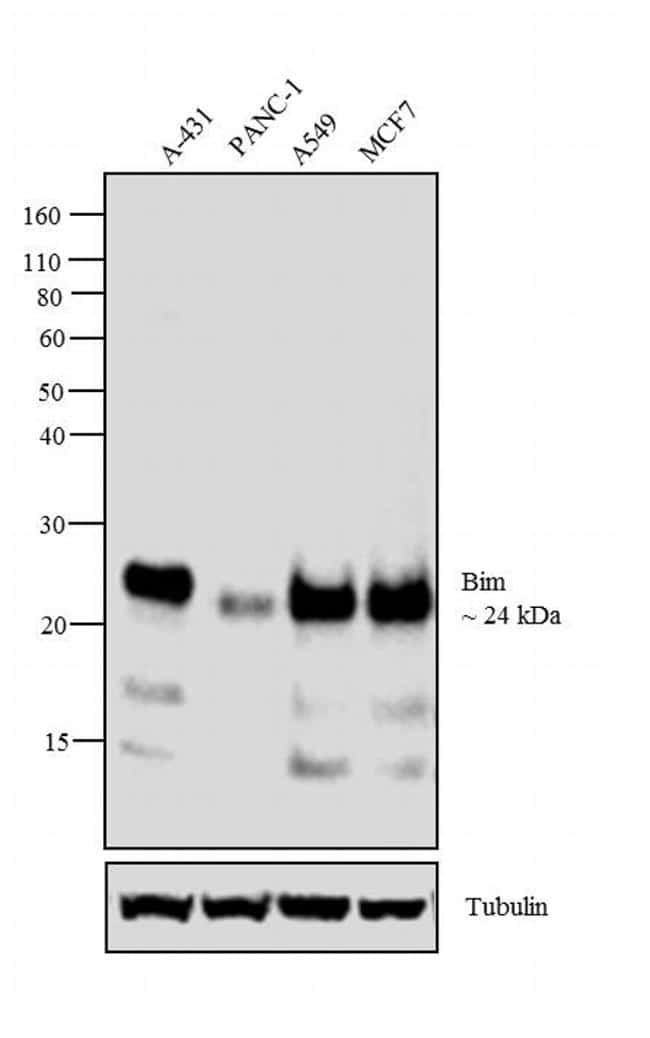

- Western blot analysis was performed on membrane enriched extracts (30 µg lysate) of A-431 (Lane 1), PANC-1 (Lane 2), A549 (Lane 3) and MCF7 (Lane 4). The blot was probed with Anti-Bim Monoclonal Antibody (Product # MA5-14848, 1:1000 dilution) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.25 µg/mL, 1:4000 dilution). A 24 kDa band corresponding to Bim was observed across the cell lines tested.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Western blot analysis was performed on membrane enriched extracts (30 µg lysate) of A-431 (Lane 1), PANC-1 (Lane 2), A549 (Lane 3) and MCF7 (Lane 4). The blot was probed with Anti-Bim Monoclonal Antibody (Product # MA5-14848, 1:1000 dilution) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.25 µg/mL, 1:4000 dilution). A 24 kDa band corresponding to Bim was observed across the cell lines tested.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescence analysis of Bim was performed using 70% confluent log phase MCF7 cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 10 minutes, and blocked with 1% BSA for 1 hour at room temperature. The cells were labeled with Bim Monoclonal Antibody (K.912.7)(Product # MA5-14848) at 1:100 dilution in 0.1% BSA and incubated overnight at 4 degree and then labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034) at a dilution of 1:2000 for 45 minutes at room temperature (Panel a: green). Nuclei (Panel b: blue) were stained with SlowFade® Gold Antifade Mountant with DAPI (Product # S36938). F-actin (Panel c: red) was stained with Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing mitochondrial localization. Panel e represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunofluorescent analysis of Bim in MCF-7 cells using a Bim monoclonal antibody (Product # MA5-14848) (green) showing colocalization with mitochondria that have been labeled with a mitochondrial fluorescent red dye. DNA is labeled using a fluorescent blue dye.
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details
- Immunohistochemical analysis of Bim in paraffin-embedded human lung carcinoma using a Bim monoclonal antibody (Product # MA5-14848).
Supportive validation
- Submitted by
- Invitrogen Antibodies (provider)
- Main image
- Experimental details

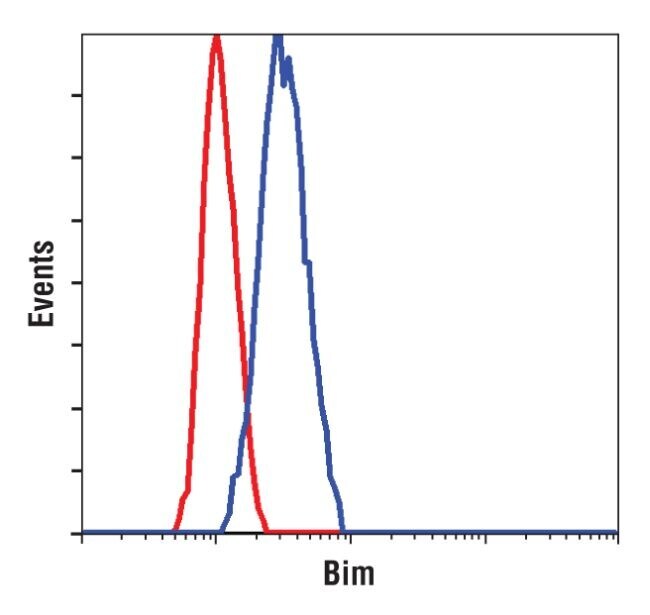

- Flow cytometric analysis of Bim in Raji cells using a Bim monoclonal antibody (Product # MA5-14848) (blue) compared to a nonspecific negative control antibody (red).
