701702

antibody from Invitrogen Antibodies

Targeting: JUNB

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Flow cytometry (Supportive data in Antibodypedia)

Chromatin Immunoprecipitation (Supportive data in Antibodypedia)

Antibody Data

Product number

701702

Provider

Invitrogen Antibodies

Product name

JunB Recombinant Rabbit Monoclonal Antibody (15H19L4)

Antibody type

Monoclonal

Antigen

Synthetic peptide

Description

This antibody is predicted to react with Monkey, Rat, Mouse and Feline.

Antibody clone number

15H19L4

Concentration

0.5 mg/mL

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western blot analysis was performed on whole cell extracts (30 µg lysate) of Hela (Lane1), U-87MG (Lane 2), A431 (Lane 3), PC3 (Lane 4) and K562 (Lane 5). The blots were probed with Anti-JUNB Recombinant Rabbit Monoclonal Antibody (Product # 701702, 1-2 µg/mL) and detected by chemiluminescence using Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, HRP conjugate (Product # A27036, 0.4 µg/mL, 1:2500 dilution). A 36 kDa band corresponding to JUNB was observed across cell lines tested. Known quantity of protein samples were electrophoresed using Novex® NuPAGE® 4-12% Bis-Tris gel (Product # NP0321BOX), XCell SureLock™ Electrophoresis System (Product # EI0002) and Novex® Sharp Pre-Stained Protein Standard (Product # LC5800). Resolved proteins were then transferred onto a nitrocellulose membrane with iBlot® Dry Blotting System (Product # IB21001). The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk. Chemiluminescent detection was performed using Pierce™ ECL Western blotting Substrate (Product # 32106).

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunofluorescence was performed on fixed and permeabilized HeLa cells for detection of JUNB using Anti-JUNB Recombinant Rabbit Monoclonal Antibody (Product # 701702, 1-2 µg/mL) and labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (Product # A27034, 1:2000). Panel a) shows representative cells that were stained for detection and localization of JUNB protein (green), Panel b) is stained for nuclei (blue) using SlowFade® Gold Antifade Mountant with DAPI (Product # S36938). Panel c) represents cytoskeletal F-actin staining using Alexa Fluor® 555 Rhodamine Phalloidin (Product # R415, 1:300). Panel d) is a composite image of Panels a, b and c clearly demonstrating nuclear localization of JUNB. Panel e) represents control cells with no primary Antibody to assess background.

Flow cytometry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Flow Cytometry analysis of JunB was performed on HeLa cells labeled with ABfinity™ Anti-JunB Recombinant Rabbit Monoclonal Antibody (Product# 701702, 2-4 ug/ 1M cells) or with Rabbit isotype control and detected with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, (Alexa Fluor® 488 conjugate, Product # A27034, 0.4 ug/ml, 1:2500) as represented by the red and yellow histograms respectively. The purple histogram represents unstained control cells and the green histogram represents no-primary-Antibody control. A representative of 10,000 cells were acquired and analyzed for each sample using an Attune® Acoustic Focusing Cytometer (4468770).

Chromatin Immunoprecipitation

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

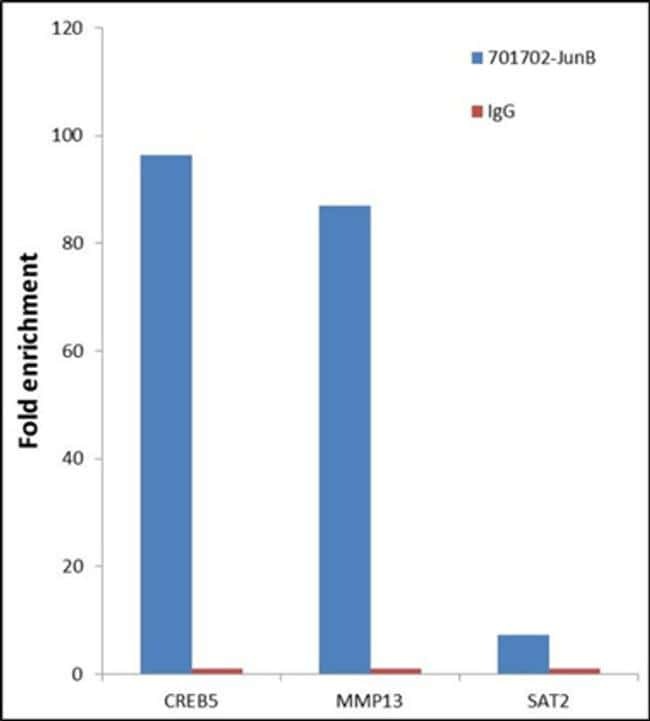

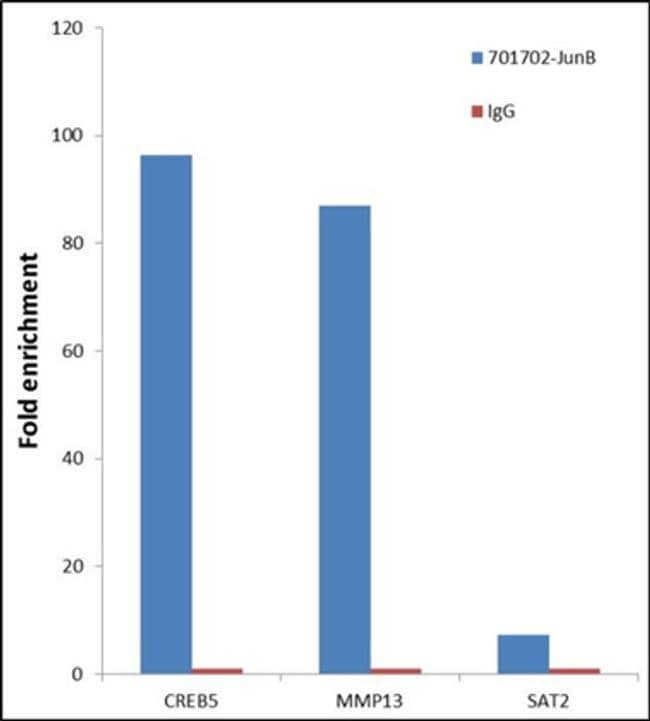

Chromatin Immunoprecipitation (ChIP) was performed using Anti-JunB Recombinant Rabbit Monoclonal Antibody (Product # 701702, 5 µg) on sheared chromatin from 2 million HeLa cells using the MAGnify ChIP system kit (Product # 49-2024). Normal Rabbit IgG was used as a negative IP control. The purified DNA was analyzed by 7500 Fast qPCR system (Product # 4351106) with optimized PCR primer pairs for the promoters of the active MMP13, CREB5 region used as positive control target gene, and the region of the inactive SAT2 satellite repeat, used as negative control target gene. Data is presented as fold enrichment of the antibody signal versus the negative control IgG using the comparative CT method.
