PA5-118026

antibody from Invitrogen Antibodies

Targeting: LAMP2 CD107b

Western blot (Supportive data in Antibodypedia)

Immunocytochemistry (Supportive data in Antibodypedia)

Immunoprecipitation (Data presented on provider website)

Immunohistochemistry (Supportive data in Antibodypedia)

Other assay (Supportive data in Antibodypedia)

Antibody Data

Product number

PA5-118026

Provider

Invitrogen Antibodies

Product name

LAMP2 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Recombinant full-length protein

Reactivity

Human

Host

Rabbit

Isotype

IgG

Vial size

100 µL

Storage

-20° C, Avoid Freeze/Thaw Cycles

Western blot

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western Blot using LAMP2 Polyclonal Antibody (Product # PA5-118026) at 1:500 dilution. Lane A: HepG2 Whole Cell Lysate, Lane B: Jurkat Whole Cell Lysate, Lane C: Hela Whole Cell Lysate. Lysates/proteins at 30 μg per lane. Secondary Goat Anti-Rabbit IgG H&L (DyLight™ 800) at 1:10,000 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 45 kDa. Observed band size: 120 kDa.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Western Blot of LAMP2 in Lane A: HepG2 Whole Cell lysate, Lane B: Jurkat Whole Cell lysate, Lane C: Hela Whole Cell Lysate. Samples (30 µg per lane) were incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:500 , followed by Goat Anti-Rabbit IgG H&L (Dylight 800) using a dilution of 1:10,000. Assay was performed under reducing conditions. Predicted band size: 45 kDa, Observed band size: 120 kDa.

Immunocytochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry analysis of LAMP2 in A431 cells. Samples were treated with 4% PFA, permeabilzed with 0.3% Triton X-100 in PBS, blocked with 10% serum, incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:1,000 (4°C overnight), followed by Alexa Fluor 488-conjugated Goat Anti-rabbit IgG secondary antibody (green) and DAPI (blue).

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunocytochemistry analysis of LAMP2 in A431 cells. Samples were treated with 4% PFA, permeabilzed with 0.3% Triton X-100 in PBS, blocked with 10% serum, incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:1,000 (4°C overnight), followed by Alexa Fluor 488-conjugated Goat Anti-rabbit IgG secondary antibody (green) and DAPI (blue).

Immunohistochemistry

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) of LAMP2 in human placenta. Samples were incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:5,000.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

Immunohistochemistry (Paraffin) of LAMP2 in human liver. Samples were incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:5,000.

Other assay

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

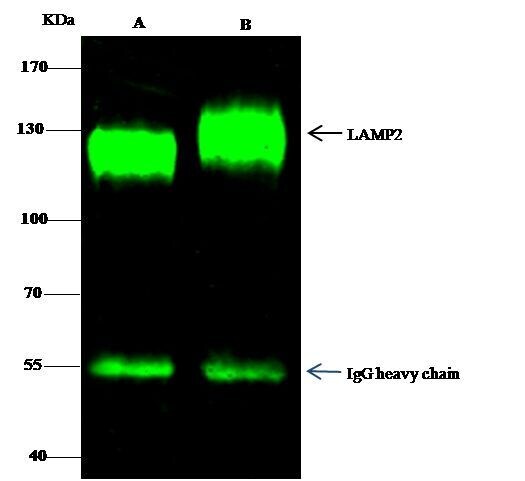

LAMP2 Immunoprecipitation using: Lane A: 0.5 mg HepG2 Whole Cell Lysate, Lane B: 0.5 mg 293T Whole Cell Lysate 2 µL with LAMP2 Polyclonal Antibody (Product # PA5-118026) and 15 µL of 50 % Protein G agarose. Primary antibody: LAMP2 Polyclonal Antibody, at 1:100 dilution. Secondary antibody: Dylight 800-labeled antibody to rabbit IgG (H+L), at 1:5,000 dilution. Developed using the Odyssey technique. Performed under reducing conditions. Predicted band size: 45 kDa. Observed band size: 120 kDa.

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

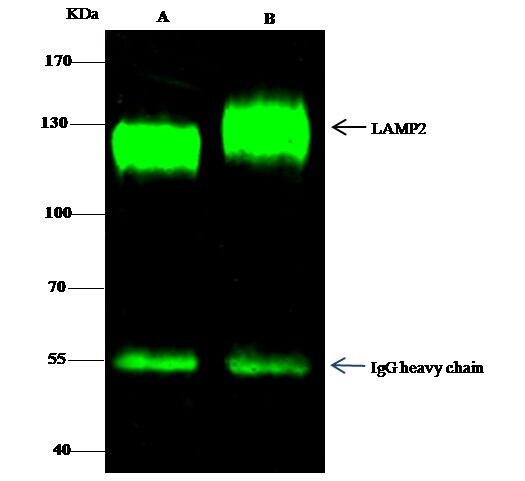

Immunoprecipitation of LAMP2 in Lane A: 0.5 mg HepG2 Whole Cell lysate, Lane B: 0.5 mg 293T Whole Cell Lysate. Samples were treated with 15 μl of 50 % Protein G agarose, incubated with polyclonal antibody (Product # PA5-118026) with a dilution of 1:100 , followed by Dylight 800-labeled antibody to rabbit IgG (H+L) using a dilution of 1:5,000. Assay was performed under reducing conditions. Predicted band size: 45 kDa, Observed band size: 120 kDa .
