PA1-12697

antibody from Invitrogen Antibodies

Targeting: SPATA16 NYD-SP12

Western blot (Recommended by provider)

Immunoprecipitation (Recommended by provider)

Chromatin Immunoprecipitation (Supportive data in Antibodypedia)

Antibody Data

Product number

PA1-12697

Provider

Invitrogen Antibodies

Product name

SPATA16 Polyclonal Antibody

Antibody type

Polyclonal

Antigen

Recombinant full-length protein

Reactivity

Human, Mouse

Host

Rabbit

Isotype

IgG

Vial size

100 µg

Concentration

1 mg/mL

Storage

-20° C, Avoid Freeze/Thaw Cycles

References

Submitted references

PRISMA: Protein Interaction Screen on Peptide Matrix Reveals Interaction Footprints and Modifications- Dependent Interactome of Intrinsically Disordered C/EBPβ.

Dittmar G, Hernandez DP, Kowenz-Leutz E, Kirchner M, Kahlert G, Wesolowski R, Baum K, Knoblich M, Hofstätter M, Muller A, Wolf J, Reimer U, Leutz A
iScience 2019 Mar 29;13:351-370

Chromatin Immunoprecipitation

Supportive validation

Submitted by

Invitrogen Antibodies (provider)

Main image

Experimental details

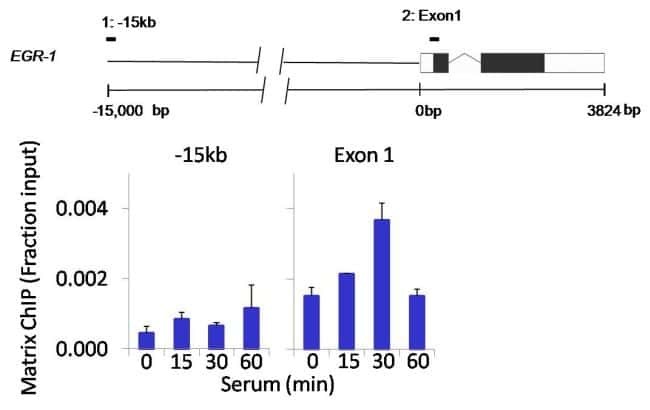

Chromatin immunoprecipitation analysis of SPT16 was performed using cross-linked chromatin from 1 x 106 HCT116 colon carcinoma cells treated with serum for 0, 15, 30, and 60 minutes. Immunoprecipitation was performed using a multiplex microplate Matrix ChIP assay (see reference for Matrix ChIP protocol: http://www.ncbi.nlm.nih.gov/pubmed/22098709) with 1.0 µL/100 µL well volume of an SPT16 polyclonal antibody (Product # PA1-12697). Chromatin aliquots from ~1 x 105 cells were used per ChIP pull-down. Quantitative PCR data were done in quadruplicate using 1 µL of eluted DNA in 2 µL SYBR real-time PCR reactions containing primers to amplify -15kb upstream of the Egr1 gene or exon-1 of Egr1. PCR calibration curves were generated for each primer pair from a dilution series of sheared total genomic DNA. Quantitation of immunoprecipitated chromatin is presented as signal relative to the total amount of input chromatin. Results represent the mean +/- SEM for three experiments. A schematic representation of the Egr-1 locus is shown above the data where boxes represent exons (black boxes = translated regions, white boxes = untranslated regions); the zigzag line represents an intron; and the straight line represents upstream sequence. Regions amplified by Egr-1 primers are represented by black bars. Data courtesy of the Innovators Program.
